Description

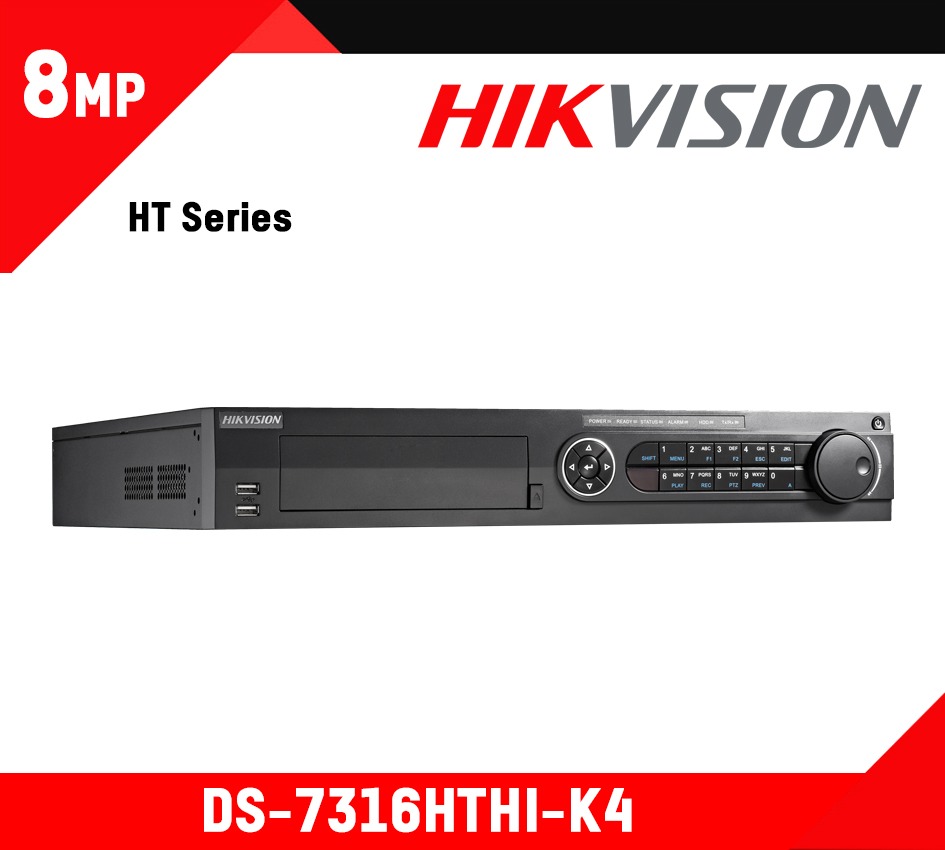

| Model | DS-7316HTHI-K4 | |
|---|---|---|
| Video/Audio Input | ||
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | BNC interface (1.0Vp-p, 75 Ω)connection; | |
| Supported camera types: | Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Support AHD input: 5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30 Support CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30 Support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
| CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω) | |
| HDMI2 Output: | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | 1080p/720p/VGA/WD1/4CIF/CIF | |
| Frame Rate: | Main stream: 8 MP@12 fps/5 MP@20 fps; 3 MP@18fps; 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-16384 Kbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
| Remote connections: | 64 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP |
|
| Hard Disk Driver | ||
| Interface Type: | 4 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel | |
| General | ||
| Power Supply: | 100 to 240 VAC | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) | |
| Weight: | ≤ 6 kg (13.2 lb) | |
