Description

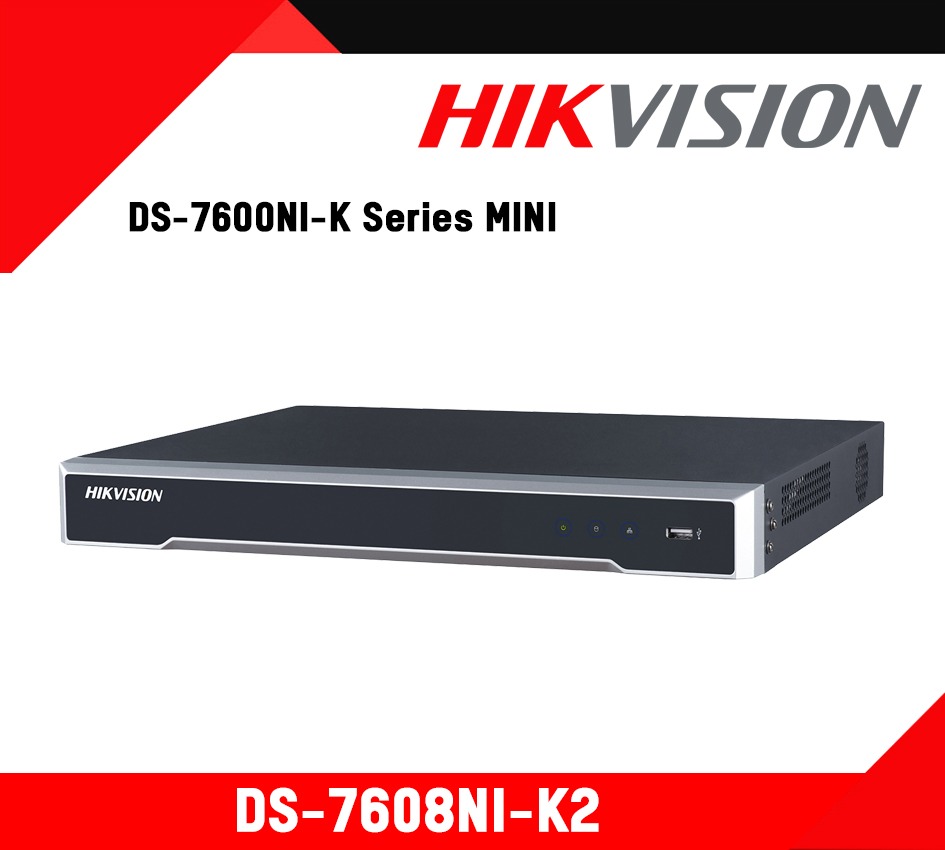

Quick Start Guide of DS-7608NI-K2
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 16-ch | |
| Network | ||
| Incoming bandwidth: | 160Mbps | |
| Outgoing bandwidth: | 160Mbps | |
| Video/Audio Output | ||
| HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Decoding | ||
| Capability: | 8-ch@1080P | |
| Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Hard Disk | ||
| SATA: | 2 SATA interfaces for 2 HDDs | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface | |
| USB Interface: | 2, USB2.0 | |
| Alarm In: | 4-ch | |
| Alarm Out: | 1-ch | |
| POE | ||
| Interface: | 8 independent 10 /100 Mbps PoE Ethernet interfaces | |
| General | ||
| Power Supply: | 100 to 200 VAC | |
| Consumption(without hard disk and POE): | ≤ 15 W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 385 mm chassis | |
| Dimensions: | 385 × 315× 52 mm (15.2″ 12.4″ 2.0″) | |
| Weight(without HDD): | ≤ 3 kg (6.6 lb) | |
