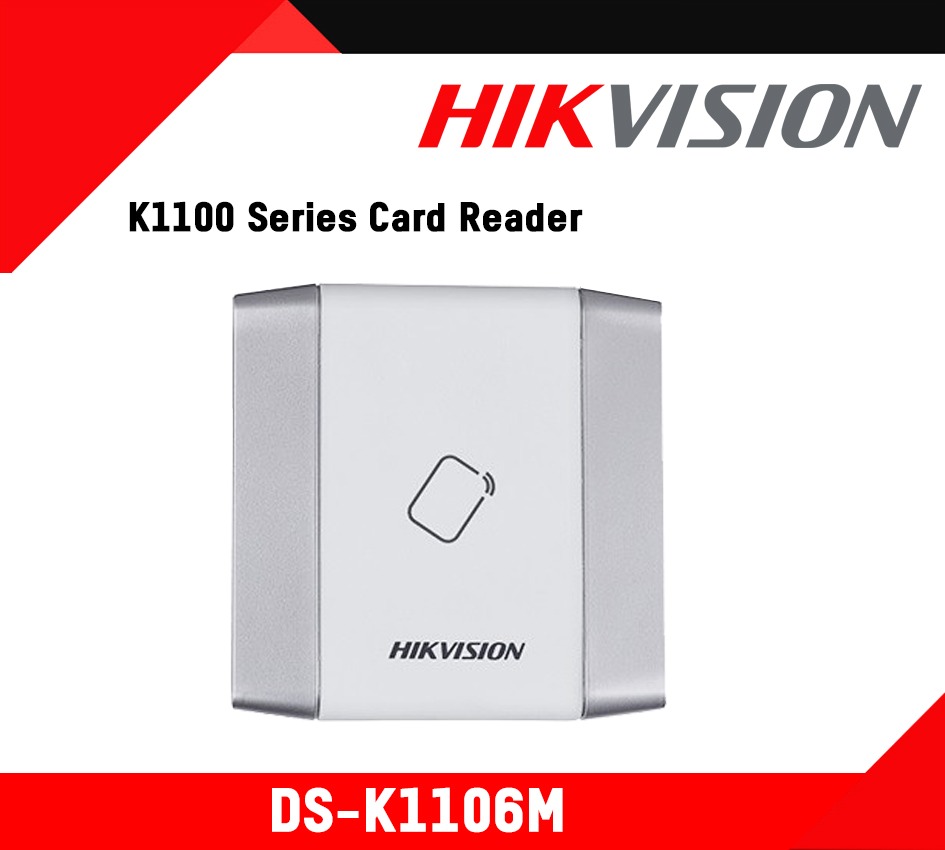

DS-K1106M - Hikvision K1100 Series Card Reader Colombo CCTV Srilanka
DS-K1106M
Availability: not in Stock

DS-K1106M

logo-2

Key Features

  • 32-bit high-speed processor
  • Support RS485 and Wiegand (w26, w34) protocol
  • A group of LED indicator (blue , green, and red) for displaying power, communication, and card reading status
  • Build-in buzzer for status indication.
  • Supports Mifare card reading, including card No.or content reading
  • Tamper-proof function
  • Accurate data and time display provided by built-in electronic clock
  • ISP function for online upgrade (only supported by RS-485 communication device)
  • Watchdog program to ensure the basic function of the terminal
Categories:

Description

Datasheet: DS-K1106M

User Manual: DS-K1106M

System Parameters
Card Reading Frequency: 13.56MHz
ID Settings: Setting by the DIP Switch on the Main Board
Card Type: M1 Card
Processor: 32-bit
Device Interfaces
Communication Mode: RS485/Wiegand（ Set via DIP Switch）
Reading Range: ≤50mm (≤1.97″)
General
Radio Frequency Standard: ISO 14443-A
Power Supply: 12VDC
Prompt: Buzzer
Power Consumption: ≤2W
LED Indicator: Power/Status
Protection Level: Indoor
Installation: Wall Mounting with Gang Box
Temper-Proof: Support
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 85.6mm x 86.5mm x 14mm (3.37″×3.41″×0.55″)
