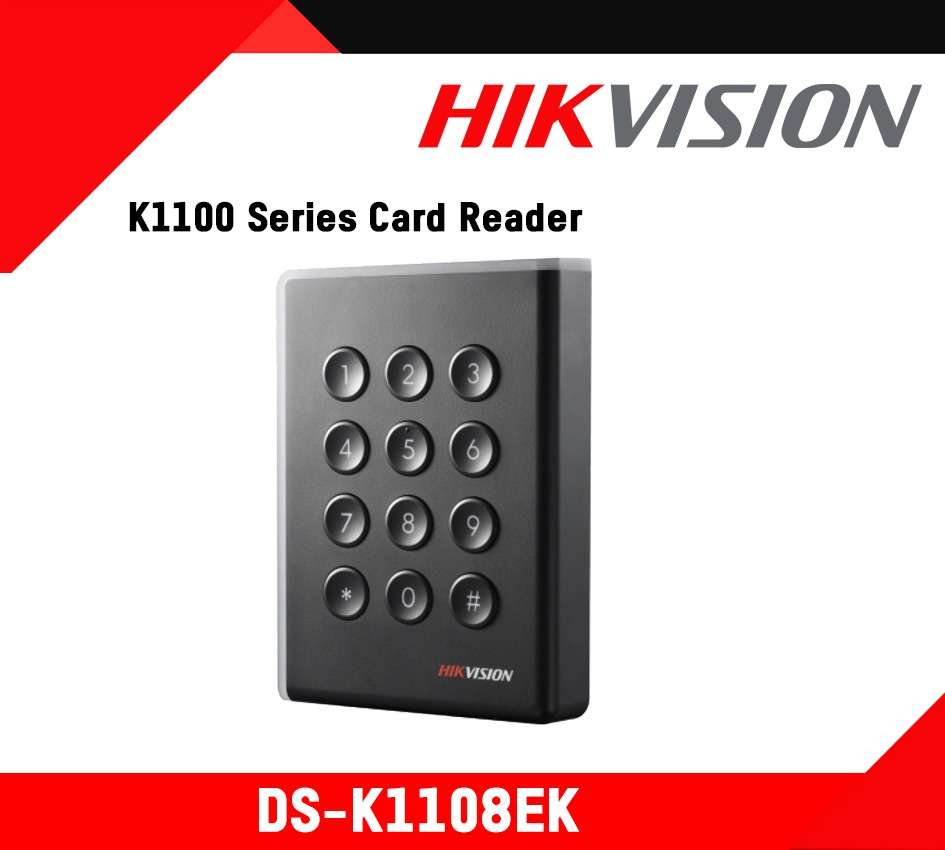

DS-K1108EK - Hikvision K1100 Series Card Reader Colombo CCTV Srilanka
DS-K1108EK
Availability: not in Stock

DS-K1108EK

logo-2

Key Features

  • 32-bit high-speed processor
  • Support RS485 and Wiegand(w26, w34) protocol
  • Build-in EM card reading module (Frequency:125KHz). Supports reading EM card No(DS-K1108EK)
  • Tamper-proof function
  • Build-in buzzer for status indication
  • Online upgrading
  • Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal

Description

User manual of DS-K1108EK

Datasheet of DS-K1108EK

System Parameters
Card Reading Distance: EM Card: ≤100 mm (≤3.94″) Mifare Card:≤50 mm (≤1.97″)
ID Settings: Setting by the DIP Switch on the Main Board
Processor: 32-bit
Device Interfaces
Communication Mode: RS485/Wiegand( Set via DIP Switch)
General
Radio Frequency Standard: ISO 14443-A
Key Board: No Keypad (DS-K1108E and DS-K1108M)
Keypad with 12 Keys (0~9, *, #) (DS-K1108EK and DS-K1108MK)
Prompt: Buzzer
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP 65 Water-Proof
Installation: Wall Mounting with/without Gang Box
Temper-Proof: Support
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 123mm × 88mm × 21mm (4.84″ × 3.46″ × 0.83″)
