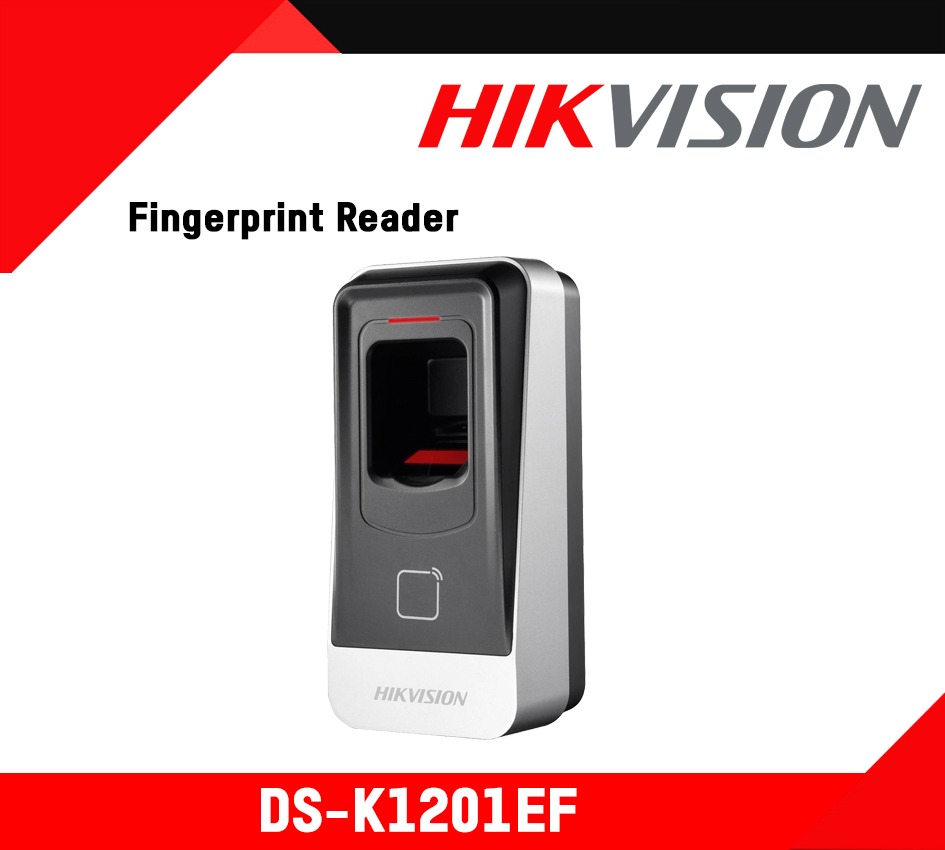

DS-K1201EF Hikvision Fingerprint Reader Colombocctv.com Srilanka
DS-K1201EF
Availability: not in Stock

DS-K1201EF

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 508 dpi high-definition
  • Supports the function of PnP (plug and play)
  • Optical fingerprint sensor designed with scratch-resistant material
  • Applies to Windows XP, Windows7, and Windows 10 operation system
  • Supports configuration and operation via client software
  • USB 2.0 communication standard for data transmission
  • Power over USB
  • Composite fingerprint images from triple collection
  • Mifare Card Reader
  • Multiple Authentication Modes (Card, Fingerprint, and Card + Fingerprint)
  • Stores 5000 Fingerprints
  • Tamper-Resistant

Hikvision’s DS-K1201MF Fingerprint Card Reader is powered by a 32-bit high-speed processor. It communicates with the access controller via the RS-485 protocol. A built-in tamper-resistant module helps to protect the card reader from malicious damage.

Categories:

Description

Datasheet: DS-K1201EF

Model DS-K1201EF
System Parameters
FRR (False Rejection Rate): ≤0.01%
Fingerprint Capacity: 5,000
Card Reading Mode: Build-in EM or Mifare Reading Module
Comparison Mode: 1:1/1:N
FAR (False Accept Rate): ≤0.001%
Card Reading Distance: EM Card: ≤100 mm (≤3.94″) Mifare Card:≤50 mm (≤1.97″)
Fingerprint Module: Optical, Red Backlight
Comparison Time: 1:1≤1s; 1:3000≤1.5s
Processor: 32 Bit High-performance Processor
Device Interfaces
Transmission Rate: 19200bps-N-8-1
Communication Mode: RS-485
General
Alarm: Tamper Alarm × 1
Mounting Method: Surface Mounting
Power Supply: 12VDC
Prompt: Buzzer
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP 65
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -40°C to +70°C (-40°F to +158°F)
Dimensions (L×W×H): 62mm × 132mm × 44mm (2.44″ × 5.20″ × 1.73″)
