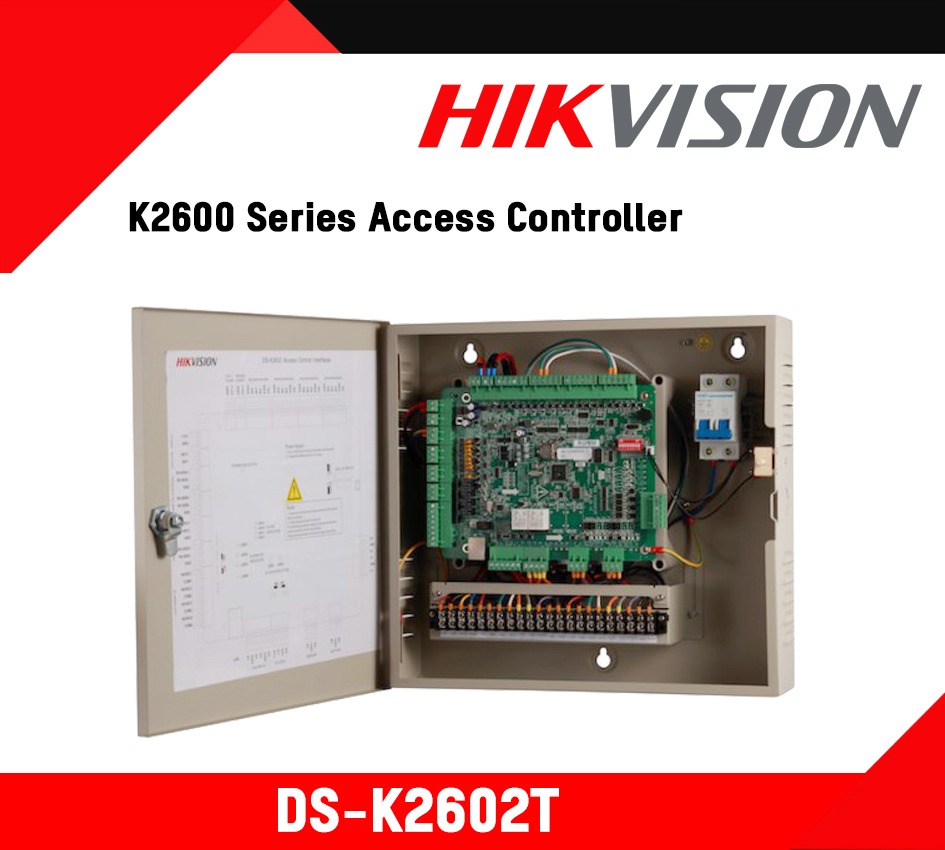

DS-K2602T - Hikvision K2600 Series Access Controller - Colombo cctv - Sri-lanka
DS-K2602T
Availability: not in Stock

DS-K2602T

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 32-bit high-speed processor
  • TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
  • The recognition and storage of card number with maximum 20 digits
  • Massive storage with 100,000 (can be expended to 200,000) cards information and 300,000 (can be expended to 600,000) access control events
  • Supports multi-door interlocking function (DS-K2602, and DS-K2604), anti-passback function, multi-card function, first card function, super card and super password function
  • Online upgrade function and online remote control of the doors
  • Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
  • Short circuit attempts alarm and open circuit attempts alarm
  • Supports zone alarm input
  • Supports RS485 interface and Wiegan interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
  • Supports various card types such as normal/disabled/ blacklist/ patrol/ guest/ duress/super card, etc.
    Various indicators to show different device status
  • Supports time synchronization via NTP, manual or automatic method
  • Supports standby battery
  • Watchdog for device running status detection
  • Data can be permanently saved when the access controller is powered off

Description


Datasheet: DS-K2602T


User Manual: DS-K2602T

System Parameters
  • Capacity: 100,000 cards 300,000 events
Device Interface
  • Communication: TCP/IP, RS-485, Wiegand (W26/W34)
  • Accessible Card Reader: 4 card readers (RS-485 interface), and 4 card readers (Wiegand interface)
  • LED Indicator: Power supply status, Communication status, and work status
  • Built-In Clock: Support
General
  • Working Temperature: -20 °C to +65 °C (-4 °F to +149 °F)
  • Working Humidity: 10% to 90% (Non-condensing)
  • Power Supply: ≤100W
  • Working Voltage: DC 12V/1A
  • Power Dissipation (Without Load): ≤4W
  • Dimensions (L×W×H): 373 mm × 345 mm × 98 mm (14.7″ × 13.6″ × 3.6″)
  • Certification: CE, FCC, CB
  • Processor: 32-Bit
  • Storage: 32M
  • Input Interface:Alarm input × 4, door contact × 2, exit button × 2, case input × 4, tamper alarm × 1
  • Output Interface: Lock relay × 2, alarm relay ×4
