Description

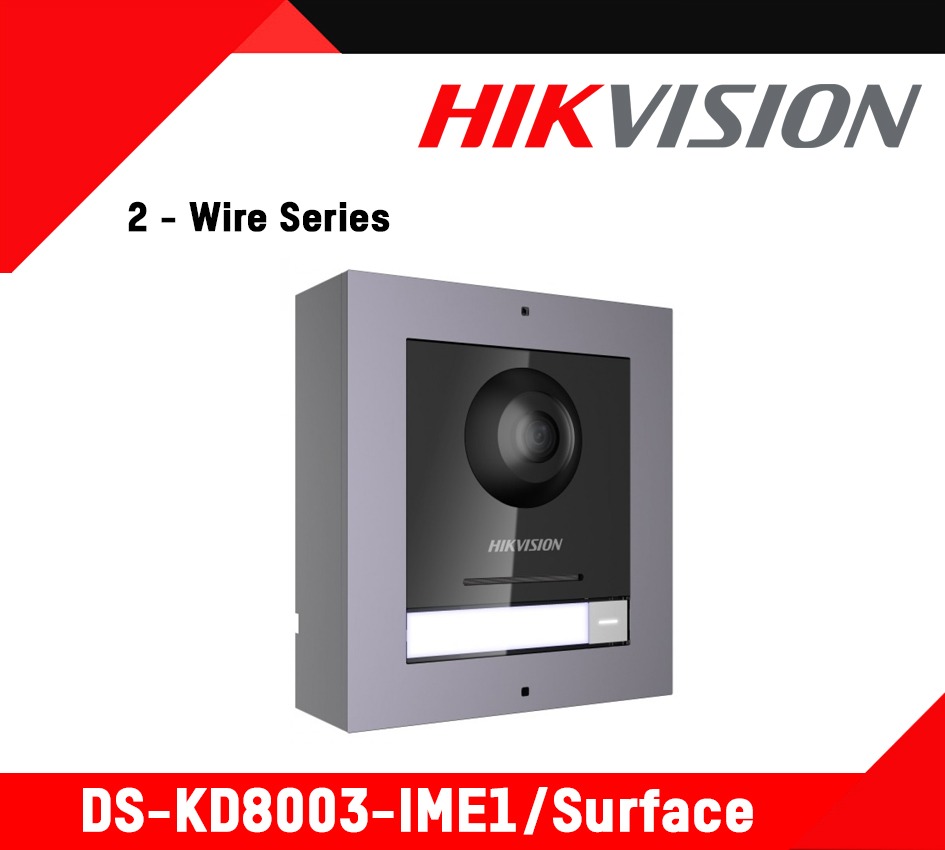

Datasheet of DS-KD8003-IME1/Surface
| System Parameters | |
|---|---|
| Operation System: | Embedded Linux Operation System |
| Operation method: | Physical Button |
| Processor: | Embedded MCU Processor |
| Camera Parameters | |
| Field of view: | 180° (Horizontal), 96°(Vertical) |
| Audio Parameters | |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker(More than 85dB within 20 cm) |
| Audio Compression Standard: | G.711 U |
| Audio Compression Rate: | 64 Kbps |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Video Parameters | |
| WDR: | Supported |
| DNR: | Supported |
| BLC: | Supported |
| Anti-flicker frequency: | 50 Hz, 60 Hz |
| Network Parameters | |
| Network Protocol: | TCP/IP, RTSP |
| Ethernet: | 10/100 Mbps Self-Adaptive Ethernet |
| Light Supplement | |
| Light Supplement Mode: | IR Supplement |
| Alarm Parameters | |
| Tampering alarm: | 1 |
| Device Interfaces | |
| Debug: | 1 |
| Module-connecting: | 1 |
| Relay Output: | 2(30V, 1A) |
| I/O Input: | 4 |
| Button: | 1 |
| General | |
| Installation: | Flush Mounting, Surface Mounting |
| Power Supply: | IEEE802.3af standard PoE, 12 VDC/1A |
| Power Consumption: | ≤10 W |
| Working Humidity: | 10% to 95% |
| Working Temperature: | -40° C to +60° C (-40° F to 140° F) |
| IP Protection Level: | IP65 |
| Dimensions(L × W × H): | 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″) |
