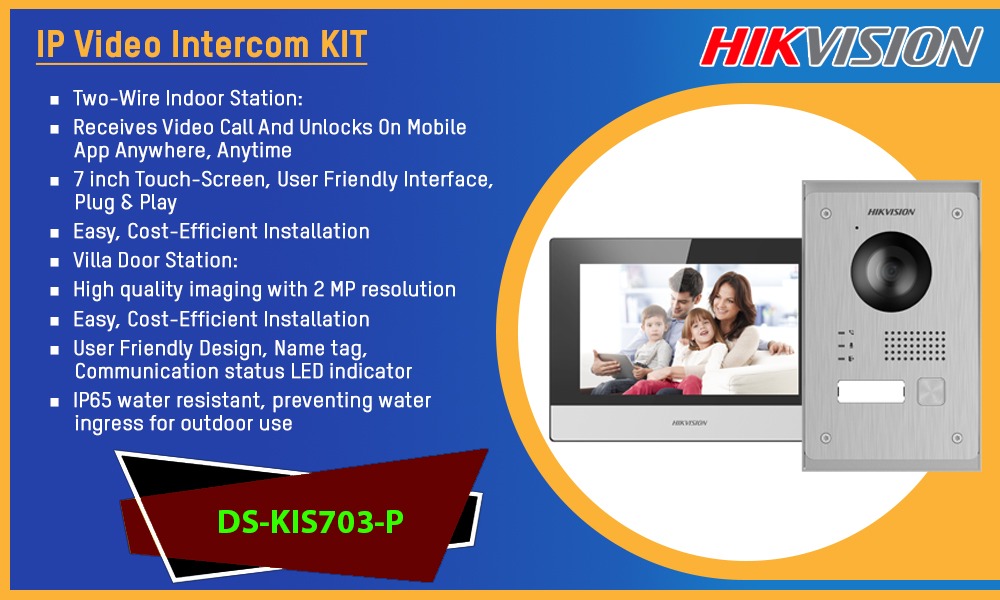

DS-KIS703-P

Description

Datasheet: DS-KIS703-P

User Manual: DS-KIS703-P

Door Station/System Parameters

• Operation System: Embedded Linux operation system
• Operation Mode: Single-button
• Flash: 32 MB
• RAM: 256 M

Door Station/Video Parameters

• Camera: 2MP HD camera
• Resolution
  • Main stream: 1920 × 1080p, 720p
  • Sub stream: 704 × 576
• Night Vision: Low illumination IR supplement mode:3 m
• WDR: True WDR
• Field Of View: Horizontal: 144° Vertical: 95°
• Video Compression Standard: H.264
• Stream
  • Main stream: 1080p@30fps, 720p@30fps
  • Sub stream: 4CIF
• Motion Detection: Support
• BLC: Support
• DNR: Support
• Anti-Flicker Frequency: 50 Hz, 60 Hz

Door Station/Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U, G.711 A
• Audio Compression Rate: 64 Kbps
• Intercom: Two-way audio communication

Door Station/Network Parameters

• Network Protocol: TCP/IP, RSTP
• Wired Network: 10/100 Mbps Ethernet

Door Station/Device Interfaces

• RS-485: 0
• Alarm Input: 5
• Output: 12 V/1 A output
• Debugging Port: 1
• Two-Wire Interface: 1
• Grounding: 1
• TAMPER Switch: 1

Door Station/General

• Power Consumption: ＜ 10 W
• Working Temperature: -40° C to +60° C(-40° F to 140° F)
• Working Humidity: 10% to 95%
• Installation: Surface mounting, flush mounting
• Protection Level: IP65
• Indicator: 3
• Heater: Support
• Power Supply: From indoor station

Indoor Station/System Parameters

• Operation System: Embedded Linux operation system
• Memory: 128 MB
• Flash: 32 MB

Indoor Station/Display Parameters

• Display Screen: 7-inch TFT touch screen
• Display Resolution: 1024 × 600
• Operation Method: Capacitive touch screen
• Brightness: Adjustable

Indoor Station/Audio Parameters

• Audio Input: Built-in microphone
• Audio Output: Built-in loudspeaker
• Quality: Noise suppression and echo cancellation
• Volume: Local adjustable
• Audio Compression Standard: G.711 U, G.711 A

Indoor Station/Network Parameters

• Wired Network: Wi-Fi 802.11 b/g/n
• Wireless Network: 10/100 Mbps self-adaptive

Indoor Station/Device Interfaces

• RS-485: 1
• Alarm Input: 8
• Two-Wire (Output): 1
• Two-Wire (Input): 1
• Power Input: 24VDC
• Debugging Port: 1

Indoor Station/General

• Power Supply: 24VDC
• Power Consumption: ≤ 8 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
