DS-TCG227-A

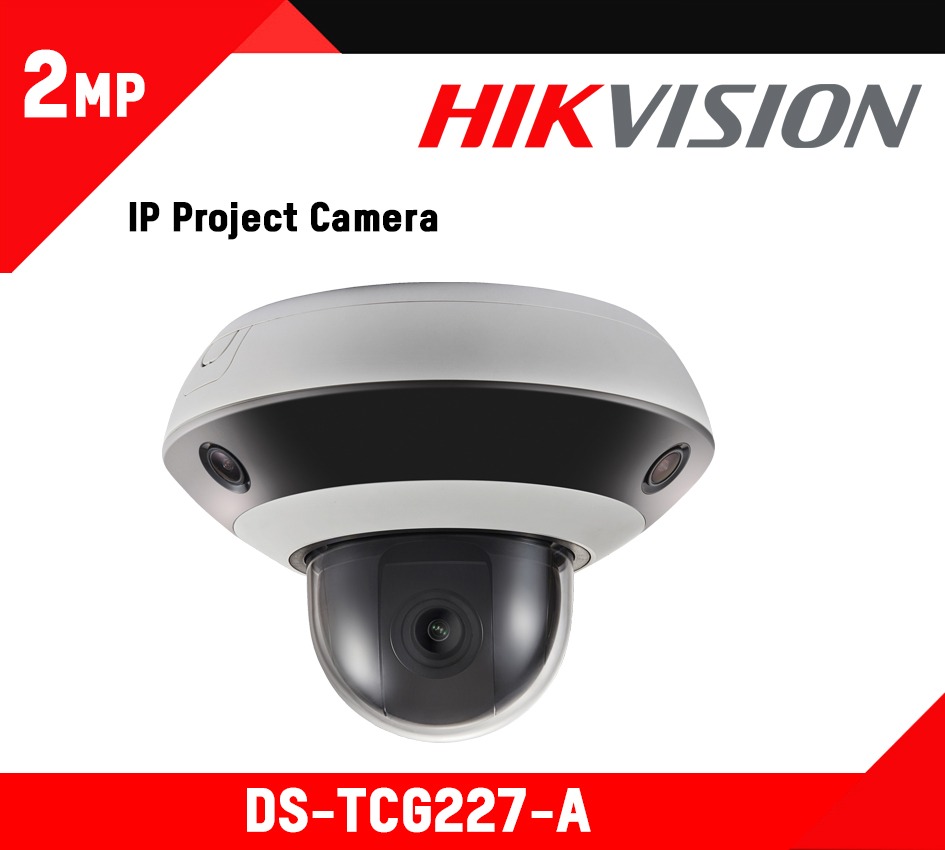

DS-TCG227-A - Hikvision 2MP IP Project Camera Colombo CCTV Srilanka
DS-TCG227-A
Availability: not in Stock

DS-TCG227-A

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • 1/2.8″ Progressive Scan CMOS
  • Up to 1920 × 1200 resolution with real-time video
  • 2x pics high-performance IR LEDs (Valid for IR camera models)
  • 3.1 to 9mm motorized vari-focal lens
  • Support relay output to control vehicle barrier
  • Support loop triggering or video triggering
  • Support multi-frame LPR
  • Support dirty license plate recognition
  • Support quick pass of multiple vehicles
  • Support vehicle type, vehicle color and vehicle brand recognition
  • Integrated shield, lights, TF Card (up to 128 G)
  • Up to 30,000 whitelists
  • Offline control
  • PoE (802.3af)
  • One-touch focus
  • Manual capture and ANPR
Categories:

Description

Datasheet: DS-TCG227-A

Quick Start Guide: DS-TCG227-A

Camera
  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Min. Illumination
    • Color: 0.002Lux@(F1.2, AGC ON)
    • B/W: 0.002Lux@(F1.2, AGC ON)
  • Shutter Speed: 1/30 s to 1/100,000 s
  • Lens: 3.1 mm to 9 mm
  • IR Cut Filter: Support
Compression Standard
  • Video Compression: H.265, H.264
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • Max. Resolution: 1920 × 1200
  • Image Settings
    • Saturation: 0 to 100
    • Brightness: 0 to 100
    • Contrast: 0 to 100
    • Gain: 0 to 100
    • 3D DNR: Off, Normal and Expert modes are selectable.
    • White balance: White Balance 1 and White Balance 2 are selectable.
  • Image Format: JPEG
  • Frame Rate: 25 fps(1920 × 1200)
Network
  • Network Storage: TF
  • Protocols: TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures
  • Security: User Authentication, Heartbeat, NTP
  • API: ISAPI, SDK
Interfaces
  • Serial Port: 1 RS-485 Port, 1 RS-232 Port
  • Built-In LED: 2 built-in LEDs
  • Audio Output: 1-ch audio output
  • Triggered Input: 3-ch triggered input, including 1-ch I/O triggered input and 2-ch alarm input
  • Relay Output: 2-ch relay output, support open/close of barrier gates
  • Memory Card Slot: 1 TF card slot, up to 128GB
  • Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port
General
  • Working Temperature: -30°C to 70°C (-22°F to 158°F)
  • Working Humidity: 90% or less (non-condensing)
  • Power Supply: 12 VDC, PoE (802.3af)
  • Power Consumption: 12 VDC, 1.0 A, 20 W
  • Protection Level: IP67, IK10
Snapshot
  • Analytic: Support ANPR
  • LED Control: Support automatic light control/time control of LEDs
  • Picture Format: JPEG with configurable quality
Vehicle Recognition
  • Color: Red, yellow(including orange), green, blue, purple, brown, white, grey(including silvery), black
  • Brand: Hyundai, Toyota, Kia, Honda, Volkswagen, Benz, Nissan, Ford, ISUZU, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, Hino, Peugeot, Ssang Yong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, UD Trucks, Subaru, IVECO, MINI, Jeep, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, SAIC Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Mercury, Joylong, Geely, Cadillac, Jinbei, Ankai, Haima, Foton, King Long, Dongfeng, Emgrand
  • Country/Region Supported By ANPR: European and Russian-Speaking Regions:

    Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Israel, Ukraine, Kyrgyzstan, and Russian Federation

  • ANPR Recognition Accuracy (Under Recommended Installation And Lighting Conditions)
    • Capture rate > 98%
    • Vehicle moving direction recognition accuracy > 96%
    • Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
    • European and Russian-Speaking Regions:
      • LPR accuracy > 98%
      • Country/Region recognition accuracy > 98%
  • Type: Car (including SUV, MPV, Pickup)/truck/bus/van
