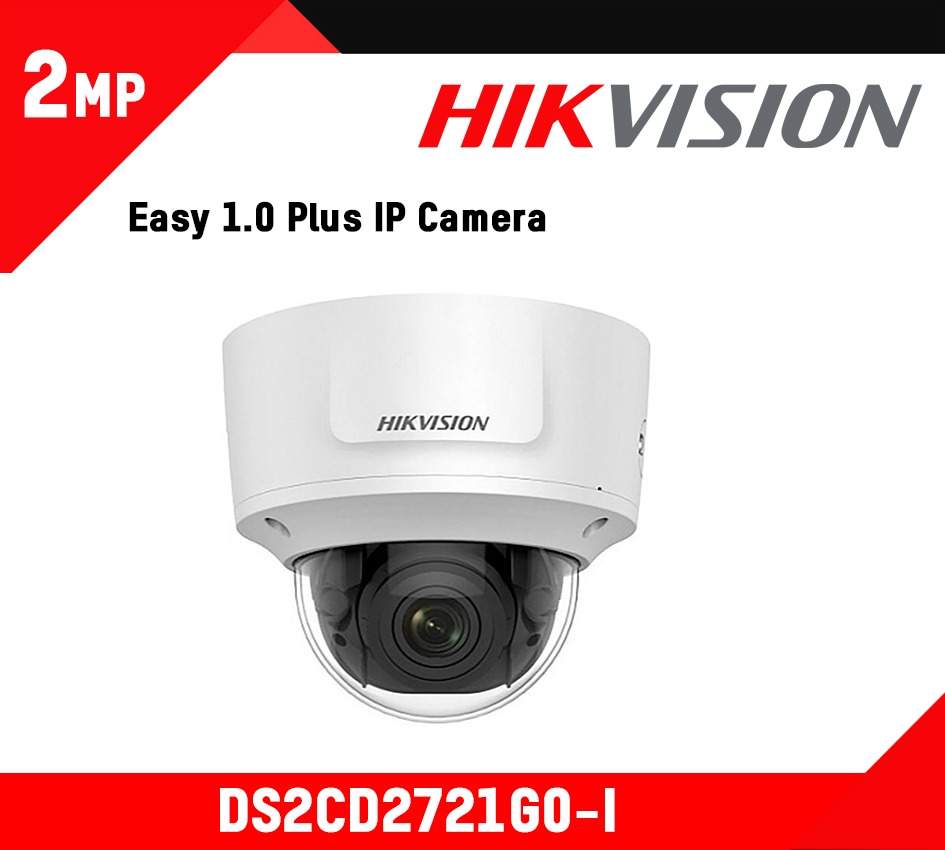

Datasheet of DS2CD2721G0-I
Quick Start Guide of DS2CD2721G0-I
User Manual of DS2CD2721G0-I
Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Wide Dynamic Range: 120 dB
- Day & Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
Lens
- Lens Type: Varifocal Lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 98° to 38°, vertical FOV 52° to 21°, diagonal FOV 115° to 43°
- Lens Mount: Ø14
- Iris Type: Fixed
- Aperture: F1.6
Illuminator
- IR Wavelength: 850 nm
- IR Range: Up to 40 m
Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360 )
- 60 Hz: 30 fps (640 × 480, 640 × 360 )
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Region Of Interest (ROI): 1 fixed region for main stream
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface, ISAPI
- User/Host: Up to 32 users. 3 levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect
- Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
- Day/Night Switch: Auto, Schedule, Day, Night
- Image Enhancement: BLC, 3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
- Reset: Yes
Event
- Basic Event: Motion detection, video tampering alarm, exception
- Smart Event: Line crossing detection, intrusion detection
General
- Power: 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug, PoE: (802.3af, Class 3, 36 V to 57 V), 0.21 A to 0.33 A, max. 12 W
- Camera Dimension: Ø153 .3 mm × 111.6 mm (6″ × 4.4 “)
- Package Dimension: 239 mm × 169 mm × 160 mm (9.4″ × 6.7″ × 6.3″)
- Camera Weight: Approx. 880 g (1.9 lb.)
- With Package Weight: Approx. 1300 g (2.9 lb.)
- Storage Conditions: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
- EMC
- FCC SDoC: 47 CFR Part 15, Subpart B;
- CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;
- RCM: AS/NZS CISPR 32: 2015;
- IC VoC: ICES-003: Issue 6, 2016;
- KC: KN 32: 2015, KN 35: 2015
- Safety
- UL: UL 60950-1;
- CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
- CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
- BIS: IS 13252(Part 1):2010+A1:2013+A2:2015
- Environment
- CE-RoHS: 2011/65/EU;
- WEEE: 2012/19/EU;
- Reach: Regulation (EC) No 1907/2006
- Other
- IP67: IEC 60529-2013;
- IK10: IEC 62262:2002
