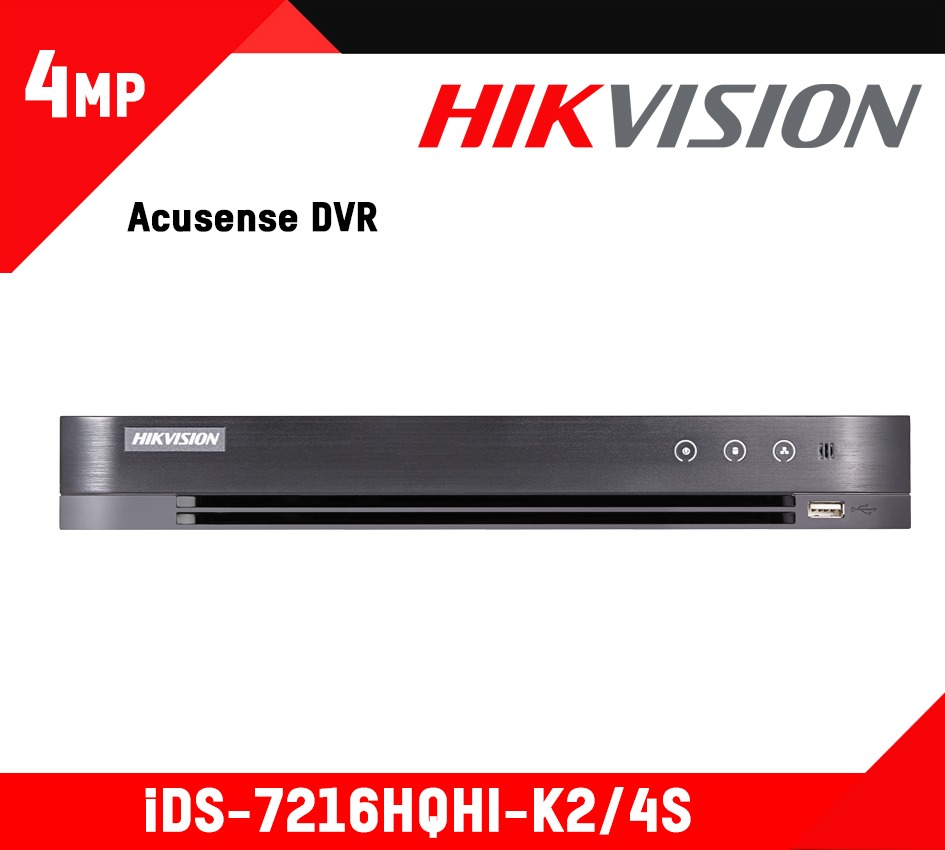

iDS-7216HQHI-K2/4S

Recording

• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution : Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video Bit Rate : 32 Kbps to 6 Mbps
• Dual Stream : Support
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bit Rate : 64 Kbps

Video And Audio

• IP Video Input : 8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input : 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
• CVBS Input : PAL/NTSC
• HDMI/VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI/VGA Simultaneous Output
• Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback : 16-ch
• HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-K1/2S, for channel 1/2 of iDS-7208HQHI-K1/4S, and for channel 1/2/3/4 of iDS-7216HQHI-K1/4S.
• CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Network

• Remote Connections : 128
• Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 2 SATA interfaces
• Capacity : Up to 10 TB capacity for each disk
• Alarm In/Out : N/A
• USB Interface : 2 × USB 2.0
• Serial Interface : RS-485 (half-duplex)

General

• Power Supply : 12 VDC
• Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity : 10% to 90%
• Weights (Without HDD) : ≤ 2 kg (4.4 lb)
• Consumption(Without HDD) : ≤ 25 W
• Dimensions(W × D × H) : 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
