Description

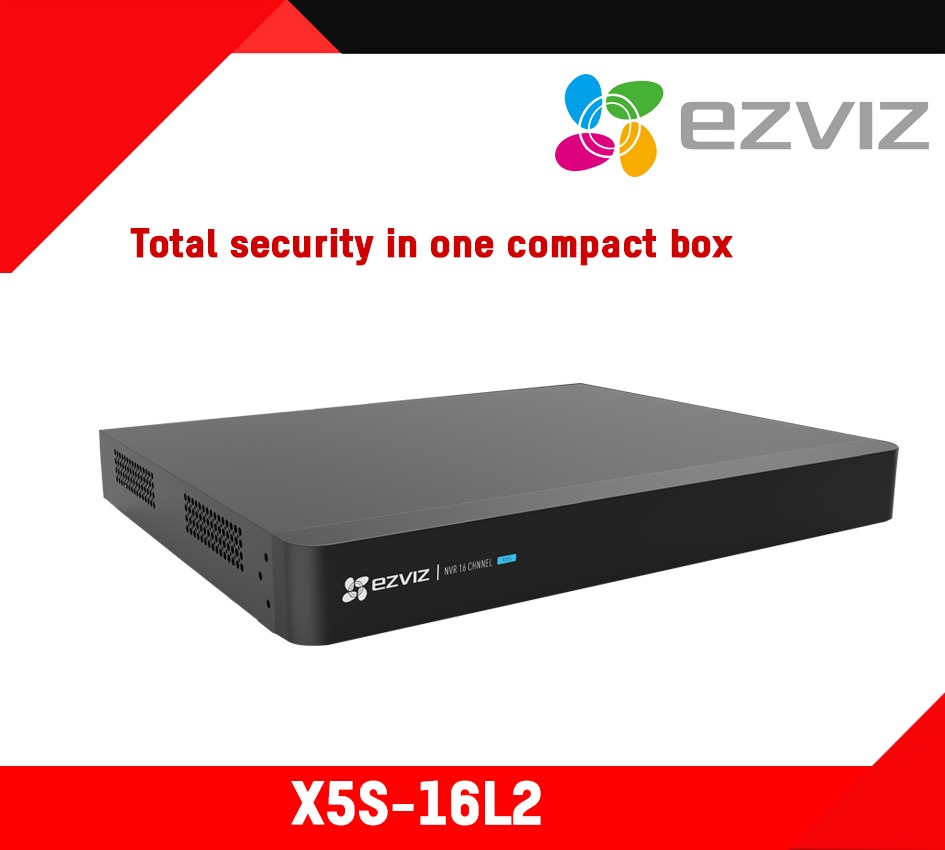

| Model | X5S-16L2 |
|---|---|
|
IPC Access Capability
|
|
|
IPC Access Capability
|
Sixteen IP cameras, each up to 5 MP |
|
Network Parameter
|
|
|
Uplink Ethernet Port
|
One 10/100/1000M adaptable Ethernet interface |
|
Required Access Bandwidth
|
200 Mbps |
|
Video Output
|
|
|
VGA
|
One channel. Resolution up to 1920 x 1080 / 60HZ |
|
HDMI
|
One channel (identical to VGA output). Resolution up to 2592 x 1944 / 60 HZ |
|
Audio/Video Codec
|
|
|
Recording Resolution
|
5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
|
Video Encoding
|
H.265, H.264 |
|
Decode Playback
|
Supports sixteen 5 MP IP cameras |
|
Video Recording Management
|
|
|
Video Recording Modes
|
Manual video recording; motion detection recording; scheduled video recording; event triggered recording. |
|
Backup Modes
|
Supports hard disk backup and internet application backup |
|
Playback Modes
|
Instant Playback; Normal Playback; Event Playback; Tag Playback; Log Event Playback; External File Playback |
|
Special Features
|
|
|
Facial Recognition
|
Supports. Works with cameras that support facial recognition |
|
Massive Access Mode
|
Supports. Can access up to 24 channels with resolution no higher than 2 MP on each channel |
|
Open Protocol
|
|
|
Open Protocol Support
|
HIKVISION, ONVIF (V.2.5) |
|
HDD
|
|
|
Interface Type
|
Two built-in SATA interfaces |
|
Capability
|
Supports 1 TB to 8 TB 3.5-inch HDD |
|
External Interface
|
|
|
Audio Output
|
Supports |
|
Audio Intput
|
Supports |
|
Hardware Reset
|
Supports |
|
USB2.0 Interface
|
2 |
|
Environmental Requirement
|
|
|
Power Supply
|
DC 12V |
|
Working Temperature
|
0°C to 40°C (32ºF to 104ºF ) |
|
Working Humidity
|
10% ~ 90% |
|
General
|
|
|
Product Dimensions
|
380 x 315 x 51.5 mm (14.96 x 12.4 x 2.03 inch) |
|
Packaging Dimensions
|
387 x 362 x 75 mm (15.24 x 14.25 x 2.95 inch) |
|
Weight
|
Less than 1000g (2.2 lbs) |
|
Certifications
|
|
|
Certifications
|
CE / FCC / UL / REACH / WEEE |
