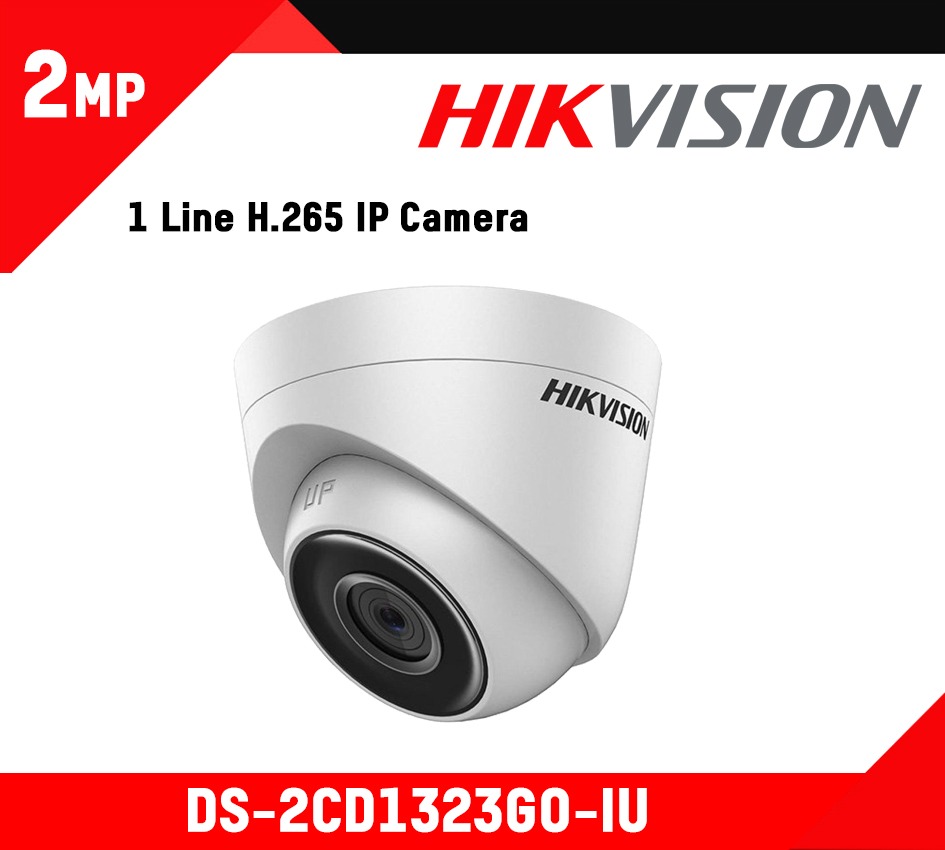

| Camera |
| Image Sensor : |
1/2.8″ Progressive Scan CMOS |
| Min. Illumination : |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed : |
1/3 s to 1/100,000 s |
| Slow Shutter : |
Yes |
| Day &Night : |
IR Cut Filter |
| Wide Dynamic Range : |
120dB |
| Angle Adjustment : |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| DNR : |
3D DNR |
| Lens |
| Lens : |
2.8/4/6/8 mm |
| Auto-Iris : |
No |
| Aperture : |
F2.0 |
| Focus : |
Fixed |
| FOV : |
2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°,4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°,6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°,8 mm, horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50° |
| Lens Mount : |
M12 |
| Illuminator |
| IR Range : |
Up to 30 m |
| Wavelength : |
850nm |
| Video |
| Max. Resolution : |
1920 × 1080 |
| Main Stream : |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream : |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream : |
50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Video Compression : |
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 |
| H.264 Type : |
Main Profile/High Profile |
| H.265 Type : |
Main Profile |
| Video Bit Rate : |
32 Kbps to 16 Mbps |
| SVC : |
H.264 and H.265 encoding |
| Image |
| Image Enhancement : |
BLC/3D DNR/HLC |
| Target Cropping : |
No |
| Day/Night Switch : |
Day/Night/Auto/Schedule |
| Network |
| Network Storage : |
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Simultaneous Live View : |
Up to 6 channels |
| User/Host : |
Up to 32 users,3 levels: Administrator, Operator and User |
| Alarm Trigger : |
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Interface |
| Communication Interface : |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Video Output : |
No |
| On-Board Storage : |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| General |
| Reset : |
Yes |
| Startup And Operating Conditions : |
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply : |
12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3) |
| Power Consumption And Current : |
12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W |
| Material : |
Metal |
| Dimensions : |
Camera: Φ 127.3 × 95.9 mm (Φ 5.0″ × 3.4″),Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight : |
Camera: Approx. 610 g (1.3 lb.),With Package: Approx. 880 g (1.9 lb.) |
| Interface Protection : |
Without -U: Ingress protection: IP67 (IEC 60529-2013) With -U: Ingress protection: IP66 (IEC 60529-2013) |
| Compression Standard |
| H.264+ |
Main stream supports |
| H.265+ |
Main stream supports |
| Smart Feature-Set |
| Face Detection : |
Yes |
