Description

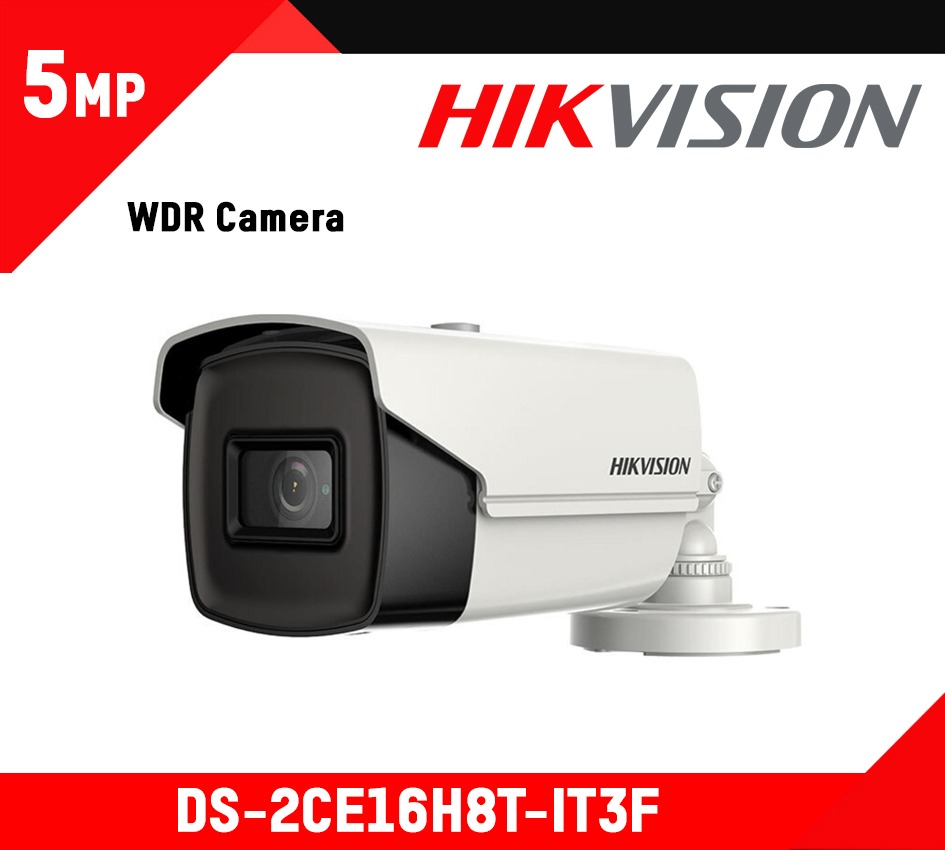

Quick Start Guide: DS-2CE16H8T-IT3F
| Camera | |
|---|---|
| WDR (Wide Dynamic Range): | ≥ 130 dB |
| Image Sensor: | 5 Megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Min. Illumination: | 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens: | 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC |
| Synchronization: | Internal Synchronization |
| Lens | |
| Horizontal Field of View: | 98°(2.8 mm), 78°(3.6 mm), 48°(6 mm), 37°(8 mm), 23°(12 mm) |
| Menu | |
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| Auto White Balance: | Auto / Manual |
| Private Mask: | ON/OFF, 4 programmable privacy masks |
| Motion Detection: | 4 programmable motion areas |
| BLC: | Support |
| AGC: | Yes |
| WDR: | Indoor/Outdoor/Off |
| Language: | English |
| Function: | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Interface | |
| Switch Button: | TVI/AHD/CVI/CVBS |
| Video Out: | 1 HD analog output |
| General | |
| Material: | Metal |
| Operation Condition: | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply: | 12 VDC±25% |
| Power Consumption: | Max. 5.8 W |
| Weather Proof: | IP67 |
| IR Range: | Up to 60m |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension: | 81.9 mm × 86.7 mm × 217.9 mm (3.22″ × 3.41″ × 8.58″) |
| Weight: | Approx. 570 g (1.26 lb.) |
