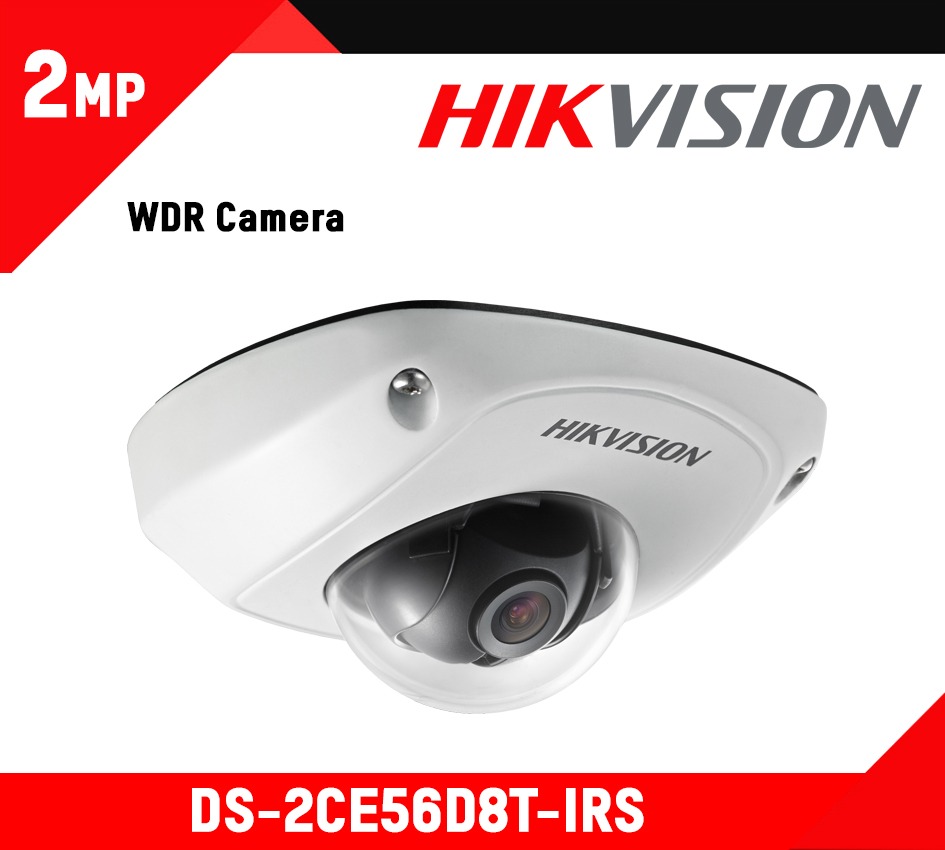

Datasheet of DS-2CE56D8T-IRS
Datasheet of DS-2CE56D8T-IRS
| Camera | |
|---|---|
| Slow Shutter | Max.: 16 times |
| Lens | 2.8 mm, 3.6 mm, 6 mm, fixed focal lens |
| Horizontal Field Of View | 94.5° (2.8 mm), 79.1° (3.6 mm), 50° (6 mm) |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | > 120 dB |
| Angle Adjustment | Pan: -30° to 30°, Tilt: 0° to 80°, Rotate: -180° to 180° |
| Image Sensor | 2 megapixel progressive CMOS sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Menu | |
| AGC | Support |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MANUAL |
| Privacy Mask | ON/OFF, 4 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| Backlight Compensation | WDR/BLC/OFF |
| 3D DNR (Digital Noise Reduction) | Level 1 to 10 |
| Language | English, Chinese |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| Interface | |
| Video Output | 1 BNC |
| Audio In | Built-in microphone |
| Audio Out | 1 RCA |
| General | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (no condensation) |
| Power Supply | 12 VDC ±30% |
| Power Consumption | Max. 5 W |
| Material | Metal & Plastic |
| IR Range | Up to 20 m |
| Dimensions | 97 mm × 99.5 mm × 46.6 mm (3.82″ × 3.92″ × 1.83″) |
| Weight | Approx. 300 g (0.66 lb.) |
