Description

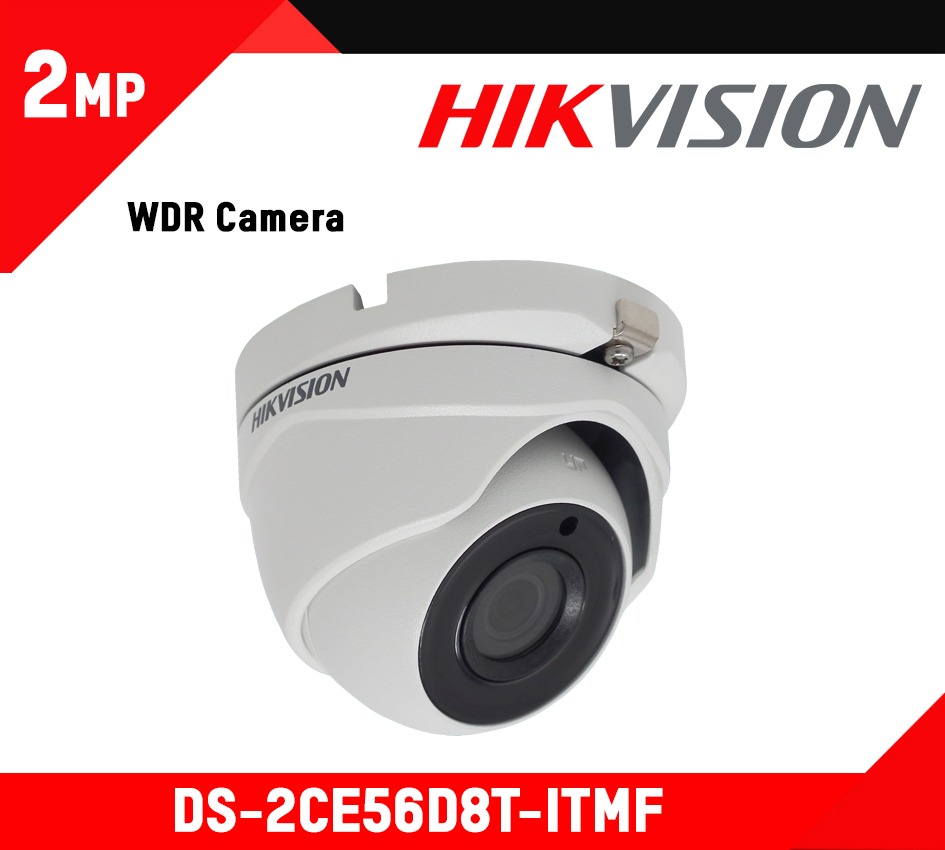

User Manual of DS-2CE56D8T-ITMF
| Camera | |
|---|---|
| Image Sensor: | 2MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1920(H)*1080(V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | 1080p@25fps/1080p@30fps |
| Synchronization: | Internal Synchronization |
| Up the Coax: | Support |
| Menu | |
| White Balance: | Auto / Manual |
| BLC: | Support |
| AGC: | Support |
| Language: | English/Chinese |
| General | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | 89.47 mm × 68.2 mm (3.52″ × 2.68″) |
| Weight: | Approx. 238 g (0.52 lb.) |
