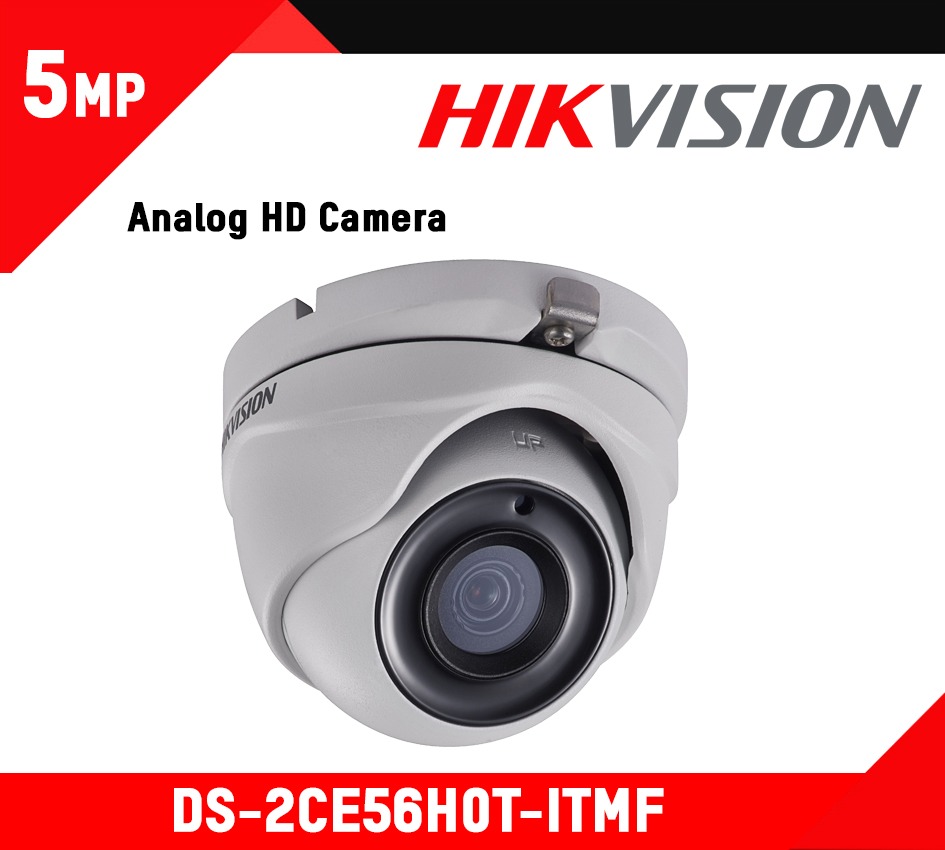

Product Description : DS-2CE56H0T-ITMF
User Manual : DS-2CE56H0T-ITMF
| Model | DS-2CE56H0T-ITMF | |
|---|---|---|
| Camera | ||
| Image Sensor: | 5MP CMOS Image Sensor | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 2560 × 1944 @ 20fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal/Power synchronization | |
| Menu | ||
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±25% | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 91 mm × 82.6 mm × 68.3 mm (3.58″ × 3.25″ × 2.69″) | |
| Weight: | Approx. 350 g (0.77 lb) | |
