Description

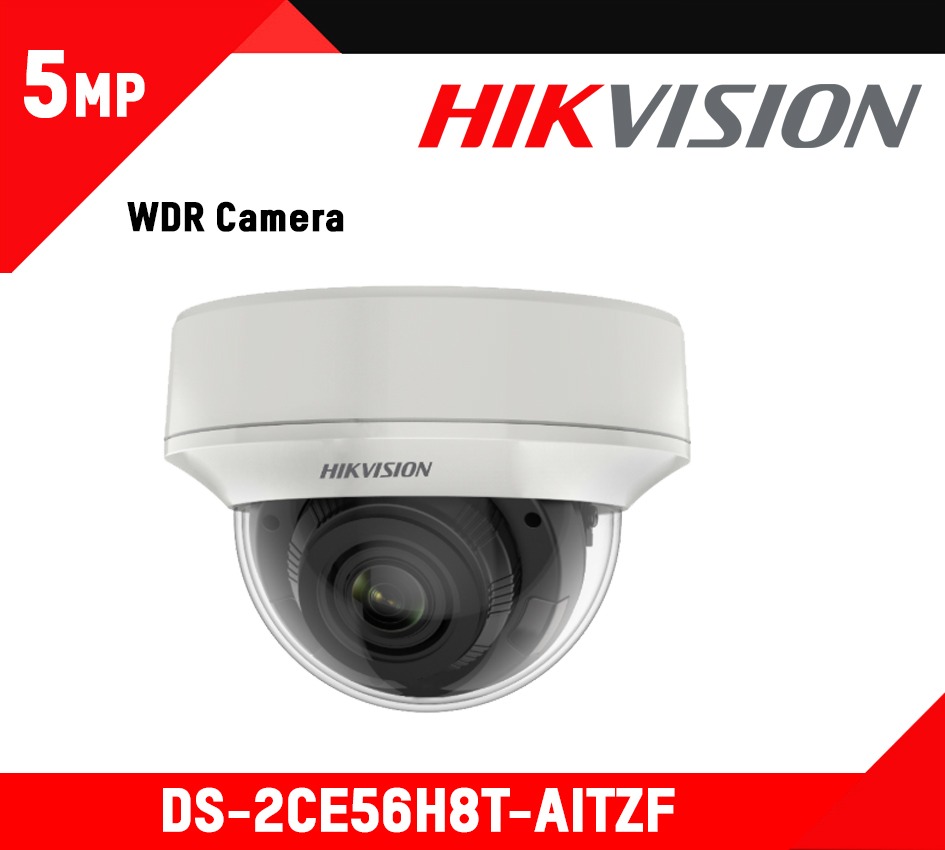

Datasheet: DS-2CE56H8T-AITZF
User Manual: DS-2CE56H8T-AITZF
| Camera | |
|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Lens Mount: | φ14 |
| Adjustment Range: | Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC |
| Synchronization: | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| BLC: | Support |
| AGC: | Support |
| WDR: | Yes |
| Language: | English |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out: | 1 HD analog output |
| General | |
| Operating Conditions: | -40 °C to 50 °C (-40 °F to 122 °F), humidity: 90% or less (non-condensation) |
| Power Supply: | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| IR Range: | Up to 60m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Ø 136 mm × 101.9 mm ( Ø 5.35″ × 4.01″) |
| Weight: | Approx. 430 g (0.95 lb.) |
