Description

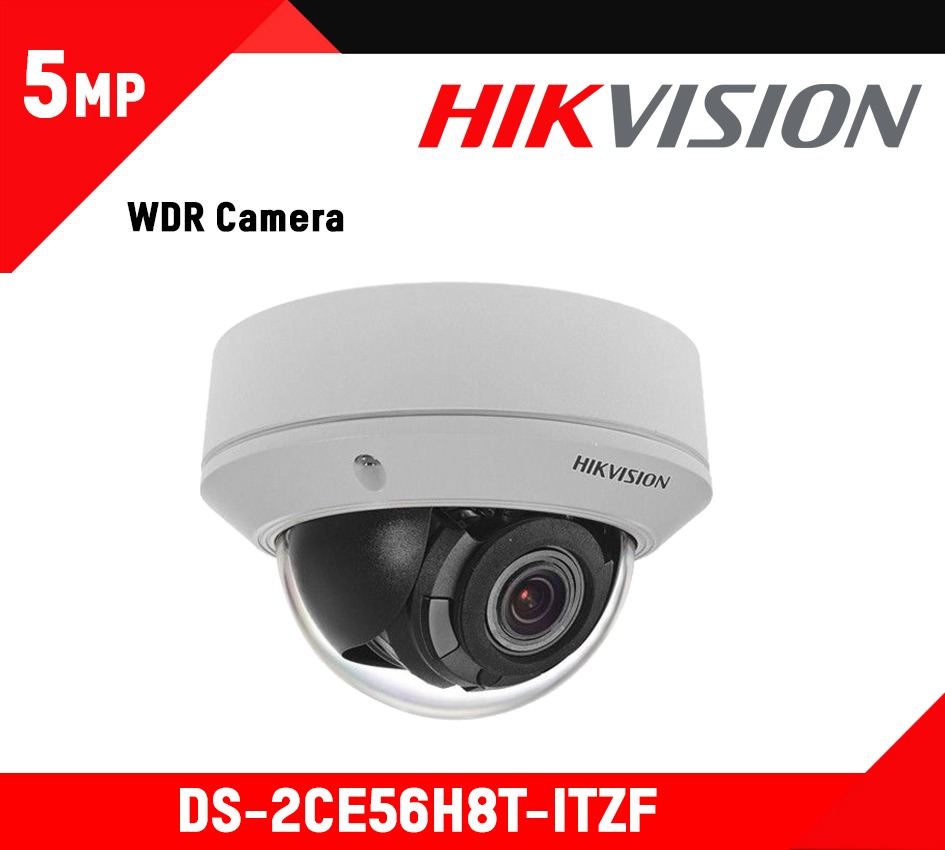

User Manual of DS-2CE56H8T-ITZF
| Camera | |
|---|---|
| Image Sensor: | 5MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | φ14 |
| Adjustment Range: | Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter with auto switch |
| Synchronization: | Internal Synchronization |
| Menu | |
| D/N Mode: | Auto / Color / B/W |
| BLC: | Support |
| AGC: | Support |
| General | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±15%, 24 VAC±15% |
| IR Range: | Up to 60m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Ø 136 mm × 101.9 mm ( Ø 5.35″ × 4.01″) |
| Weight: | Approx. 430 g (0.95 lb.) |
