Description

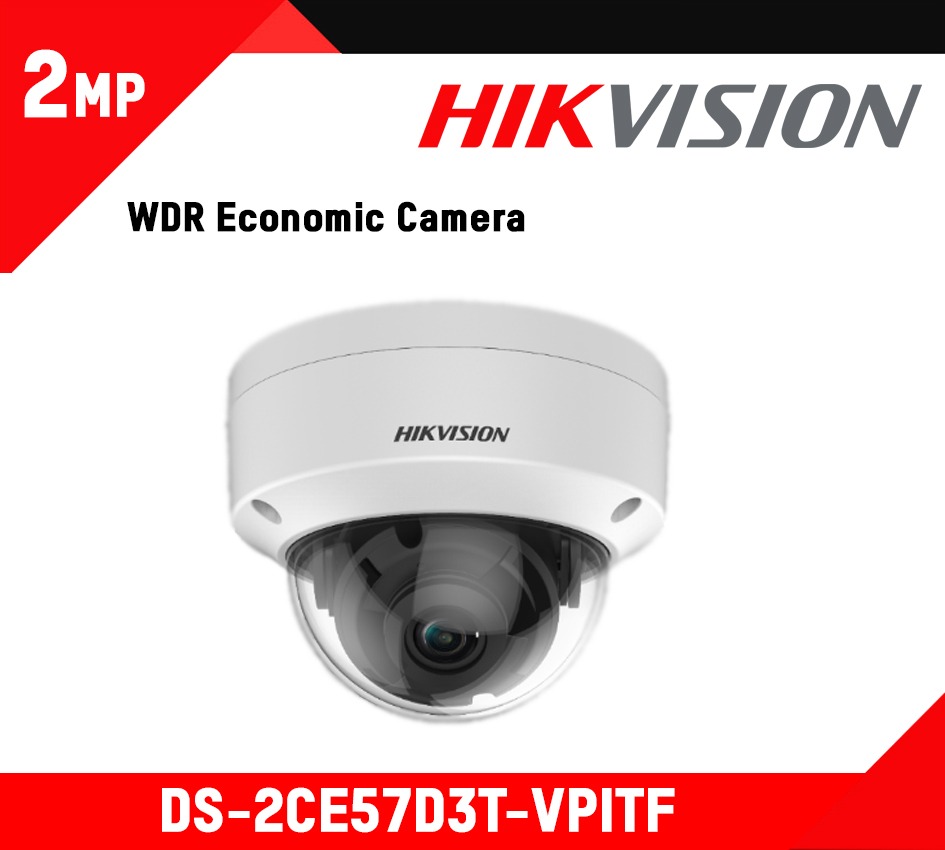

User Manual : DS-2CE57D3T-VPITF
Data Sheet : DS-2CE57D3T-VPITF
Camera
- Lens: 2.8 mm, 3.6 mm, 6 mm
- Horizontal Field Of View: 106° (2.8 mm), 82° (3.6 mm), 51° (6 mm)
- Lens Mount: M12
- Day & Night: IR cut filter
- Synchronization: Internal synchronization
- WDR (Wide Dynamic Range): ≥ 120 dB
- Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
- Image Sensor: 2.0 megapixel progressive scan CMOS
- Signal System: PAL/NTSC
- Frame Rate: PAL: 1080p@25fps,NTSC: 1080p@30fps
- Resolution: 1920 (H) ×1080 (V)
- Min. Illumination: 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Menu
- Image Mode: STD/HIGH-SAT
- AGC: High/Medium/Low
- Day/Night Mode: Auto/Color/BW (Black and White)
- Backlight Compensation: Yes
- WDR: Yes
- 3D DNR (Digital Noise Reduction): Level 1 to 9
- Language: English
- Functions: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
- HLC: Yes
Interface
- Video Output: 1 HD analog output
- Switch Button: TVI/AHD/CVI/CVBS
General
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Power Supply: 12 VDC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
- Power Consumption: Max. 4.6 W
- Protection Level: IP67, IK10
- Material: Metal
- IR Range: Up to 30 m
- Dimensions: Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″)
- Weight: Approx. 487 g (1.07 lb.)
