Description

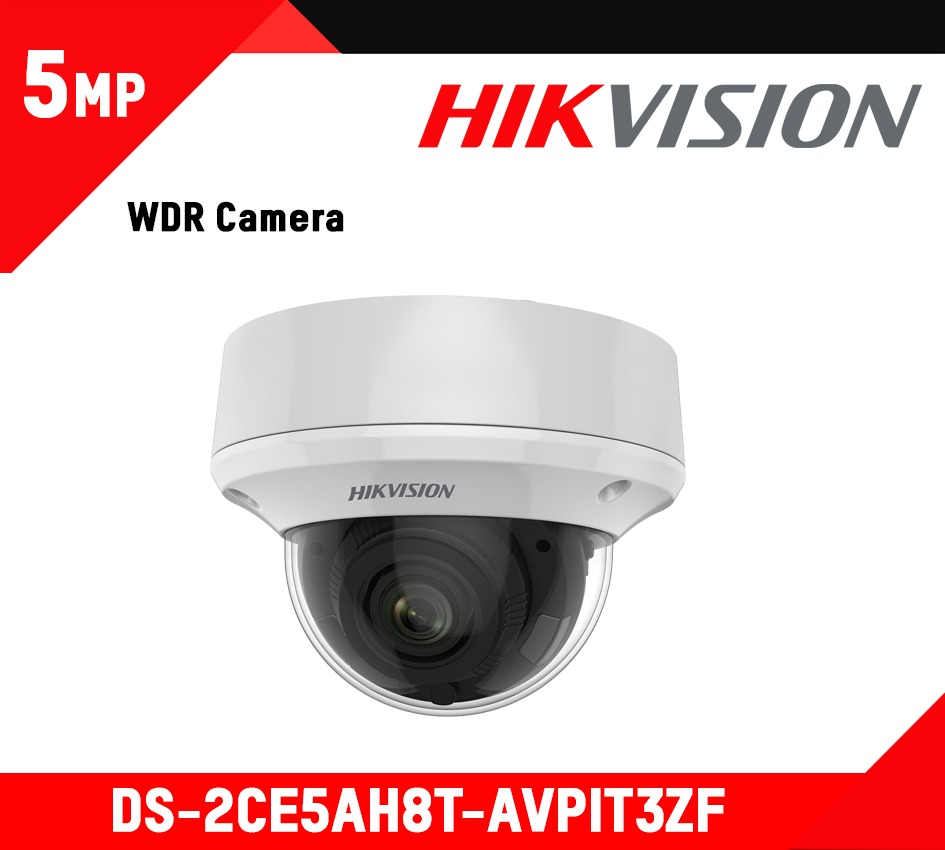

User Manual: DS-2CE5AH8T-AVPIT3ZF
Data Sheet: DS-2CE5AH8T-AVPIT3ZF
| Camera | |
|---|---|
| Lens : | 2.7 mm to 13.5 mm motorized varifocal lens |
| Horizontal Field Of View : | 92.3° to 29.3° |
| Lens Mount : | Φ 14 |
| Day & Night : | IR cut filter, Auto/Color/BW (Black and White) |
| Synchronization : | Internal synchronization |
| WDR (Wide Dynamic Range) : | ≥ 130 dB |
| Angle Adjustment : | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Image Sensor : | 5 megapixel progressive scan CMOS |
| Signal System : | PAL/NTSC |
| Frame Rate : | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,CVI: 4 MP@25fps, 4 MP@30fps,CVBS: PAL, NTSC |
| Resolution : | 2560 (H) × 1944 (V) |
| Min. Illumination : | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s |
| Menu | |
| AGC : | Yes |
| White Balance : | Auto/Manual |
| Privacy Mask : | 4 programmable privacy masks |
| Motion Detection : | 4 programmable areas |
| WDR : | Yes |
| 3D DNR (Digital Noise Reduction) : | Level 1 to 9 |
| Language : | English |
| Functions : | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| BLC (Backlight Compensation) : | Yes |
| Interface | |
| Video Output : | 1 HD analog output |
| Switch Button : | TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition : | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply | -A : 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC. |
| Power Consumption | -A : Max. 8 W |
| Material : | Metal |
| IR Range : | Up to 60 m |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions : | Φ 145 mm × 111.3 mm (Φ 5.70″ × 4.37″) |
| Weight : | Approx. 830 g (1.83 lb.) |
| Ingress Protection : | IP67, IK10 |
