Description
Datasheet of DS-2CE71D0T-PIRLPO
User Manual of DS-2CE71D0T-PIRLPO

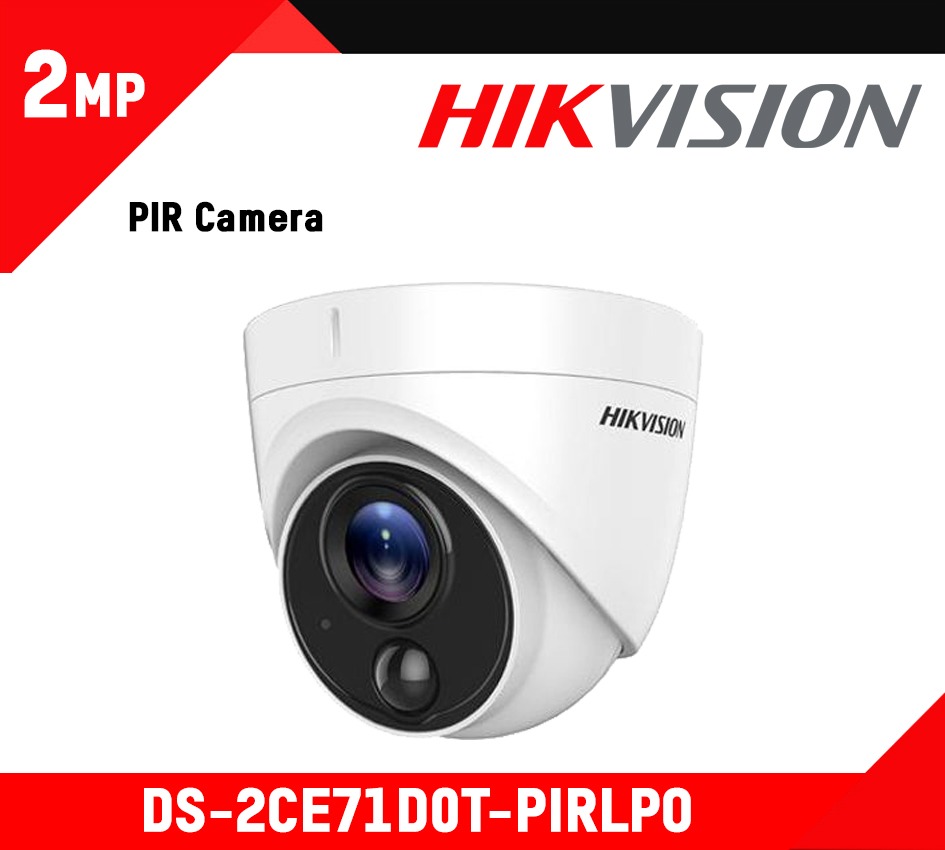

| Model | DDS-2CE71D0T-PIRLPO | |
|---|---|---|
| Camera | ||
| Image Sensor: | 2.0 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Lens: | 2.8 mm, 3.6 mm fixed focal lens | |
| Day& Night: | IR cut filter | |
| Horizontal Resolution: | 1920 (H) × 1080 (V) | |
| Synchronization: | Internal Synchronization | |
| Lens | ||
| Horizontal Field of View: | 103° (2.8 mm), 82.2° (3.6 mm) | |
| Menu | ||
| White Light: | Alarm/Off | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| Auto White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, Mirror, Smart IR | |
| Interface | ||
| Video Out: | 1 HD analog output | |
| General | ||
| Ingress Protection: | IP67 | |
| PIR Range: | Angle: 110°, Range:11 m | |
| Material: | Enclosure: Plastic Main body: Plastic |
|
| Power Supply: | 12 VDC±25% | |
| IR Range: | Up to 20m | |
| Dimension: | Ø 109.8 mm × 89.75 mm (Ø 4.32″ × 3.53″ ) | |
| Weight: | Approx. 237 g (0.52 lb.) | |
