Description

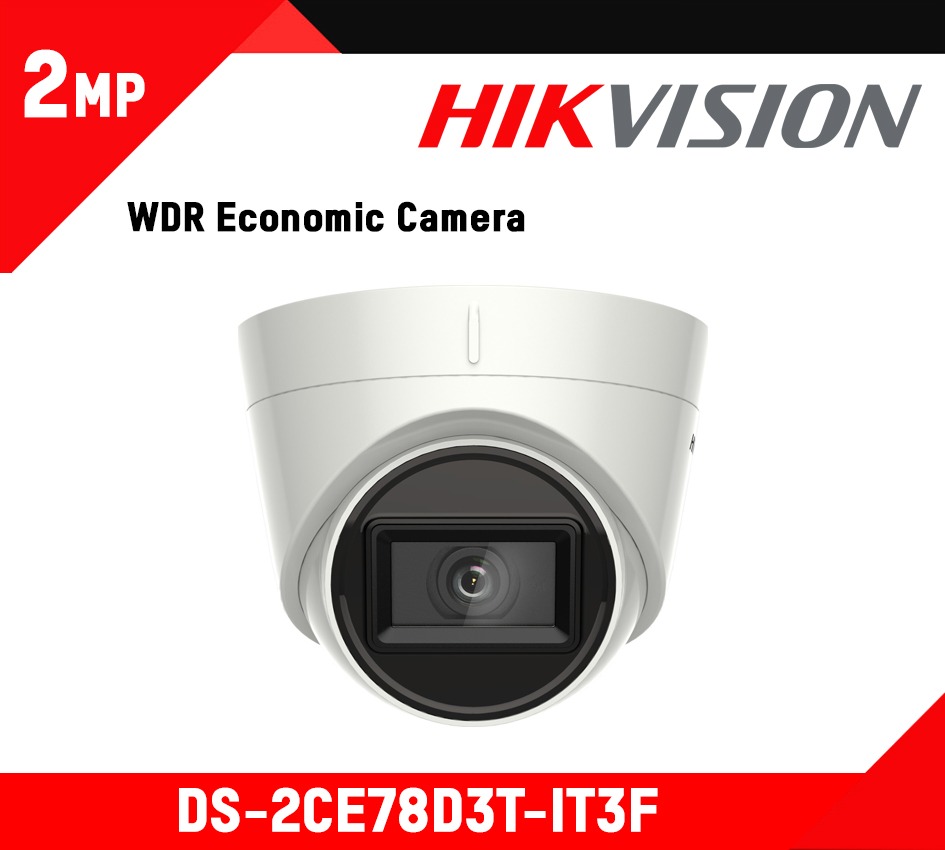

Quick Start Guide: DS-2CE78D3T-IT3F
Camera
- Image Sensor: 2.0 megapixel progressive scan CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
- Slow Shutter: Max. 16 times
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 106°
- 3.6 mm, horizontal FOV: 82°
- 6 mm, horizontal FOV: 51°
- 8 mm, horizontal FOV: 39°
- 12 mm, horizontal FOV: 24°
- Lens Mount: M12
Illuminator
- Supplement Light Range: Up to 30 m
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: AGC;Sharpness;Brightness;Smart IR;Mirror
- Frame Rate
- PAL: 1080P@25fps
- NTSC: 1080P@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): ≥120 dB
- Image Enhancement: BLC;HLC;Global
- Noise Reduction: 3D DNR
Supplement Detection(PIR)
- PIR Range: Up to 50 m
Interface
- Video Output: 1 HD analog output;Switchable TVI/AHD/CVI/CVBS
General
- Power: 12 VDC ± 25%, max. 4.6 W
- Material: Main body: Metal, Enclosure: Plastic
- Dimension: 109.82 mm × 91.03 mm (4.32″ × 3.6″)
- Weight: Approx. 302 g (0.67 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
- Language: English
Approval
- Protection: IP67
