Description

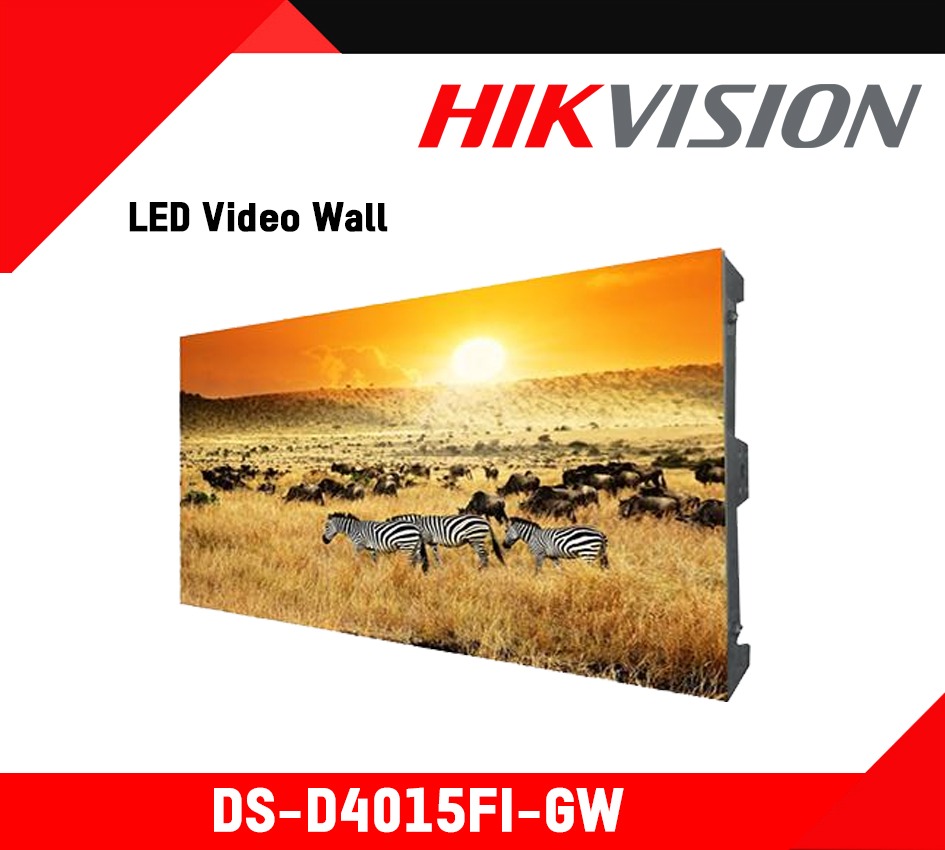

| Model | DS-D4015FI-GW |
|---|---|
| Pixel Configuration: | Surface mounted trinity LED |
| Encapsulation Brand: | NationStar gold wire |
| Driver IC: | MBI5153 |
| Housing Included: | Yes |
| Power Supply Brand: | Megmeet |
| Control System: | Hikvision-developed |
| Pixel Pitch: | 1.588 mm |
| Dimensions (W×H×D): | 609.92 × 343.08 × 75 mm (24.0 × 13.5 × 2.95 inch) |
| Packing Dimensions (W×H×D): | 796 × 484 × 192 mm (31.33 × 19.05 × 7.56 inch) |
| Resolution: | 384 × 216 |
| Pixel Density: | 396,384 pitch/ m² |
| Area: | 0.209 m² |
| Aspect Ratio: | 16:9 |
| Material: | Sealed die casting aluminum |
| Maintenance Method: | Magnet front maintenance for lamp boards, and rear maintenance for power supply and receiving card |
| Max. Brightness: | 500 nits |
| Brightness Control: | Manual/Automatic/Remote controller |
| Color Temperature: | 3000 to 10000 adjustable |
| Viewing Angle: | Horizontal 160°, vertical 160° |
| Optimal Viewing Distance: | 6 m |
| Center Distance Deviation of LED Brightness Uniformity: | < 3% |
| Brightness Uniformity: | ≥ 97% |
| Color Uniformity: | ≤ ± 0.003Cx, Cy |
| Contrast: | ≥ 3000:1 |
| Driving Mode: | Constant current driving |
| Frame frequency: | 60 Hz |
| Refresh Rate: | 3840 Hz |
| Power Supply: | 100 to 240 VAC |
| Max. Consumption: | ≤ 850 W/m² |
| Average Consumption: | < 280 W/m² |
| Operating Temperature: | –10°C to 40°C (14°F to 104°F) |
| Storage Temperature: | –20°C to 60°C (–4°F to 140°F) |
| Operating Humidity: | 10% to 80% (non-condensing) |
| Storage Humidity: | 10% to 85% (non-condensing) |
| Gross Weight: | 9.8 kg (21.6 lb including packaging) |
| Wet Weight: | 9.3 kg (20.5 lb) |
