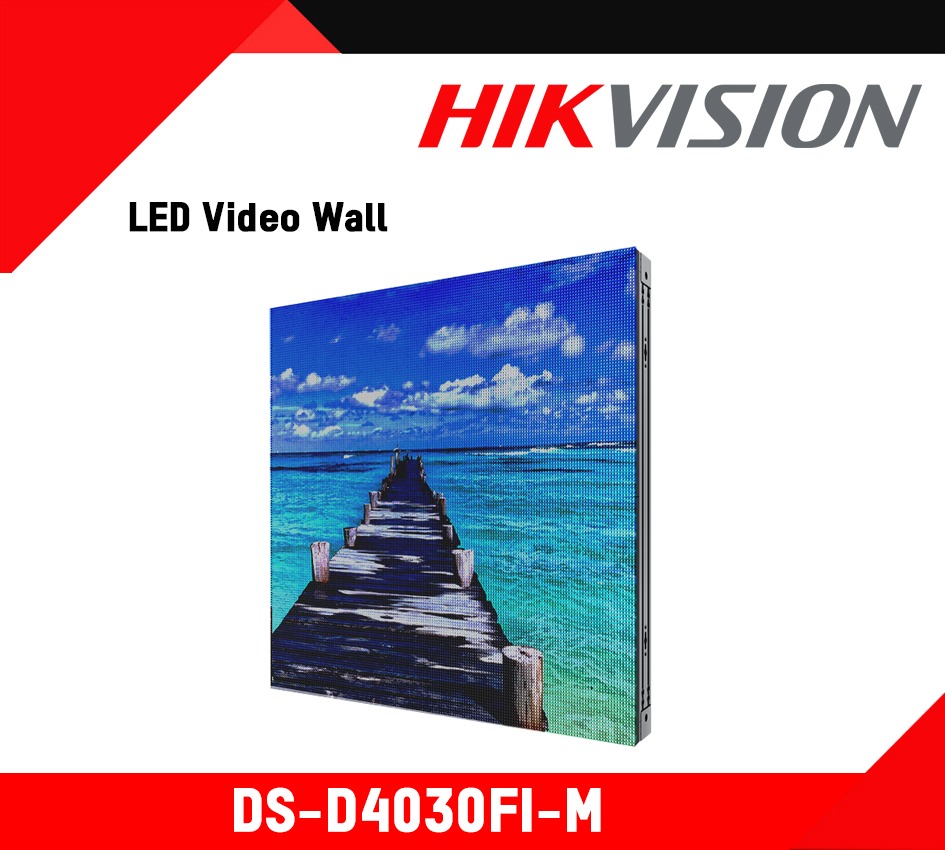

DS-D4030FI-M
Vous êts ici:
ColomboCCTV Home Page
/
/
/
DS-D4030FI-M
DS-D4030FI-M
DS-D4030FI-M
Availability: not in Stock

DS-D4030FI-M

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • For video wall composition with superior luminance uniformity and black mura prevention
  • High brightness provides vivid images in a range of lighting conditions
  • Superior contrast ratio
  • Broadcast grey processing gives more image details
  • Superior brightness and color uniformity maintains smooth and complete image quality
  • Ultra high refresh rate
  • Nanosecond response time
  • Long service life
  • Wide viewing angle (120°)
  • High aperture ratio and wide color gamut coverage (NTSC)
  • Low heating and superior cooling system ensures high reliability and environmental protection.
Category:

Description

Datasheet : DS-D4030FI-M

LED Module
Module type: Surface mounted trinity LED ( SMD2121)
Pixel pitch: 3 mm
Resolution (W × H): 64 × 64
Pixel density: 111,111 pitch/ m2
Dimensions (W × H × D): 192 × 192 × 16.1 mm
Optical
Brightness (nits): 800
Color temperature: 3200 to 9300 adjustable
Viewing angle: Horizontal 120°, vertical 120°
Recommended viewing distance: ≥ 3 m
Brightness uniformity: ≥ 97%
Color uniformity: ≤ ± 0.003 Cx, Cy
Contrast: ≥3000 : 1
Electrical
Max. consumption (W/m2): 800
Average consumption (W/m2): 500
Power supply: 100 to 240 VAC ± 15%
Processing Performance
Driving mode: Constant current driving
Frame frequency: 60 Hz
Refresh rate: 1,000 Hz
Processing depth (bit): 16
Grey level (bit): 65,536
Color: >16.7 M
Brighness control: Auto/Manual, 256 levels adjustable
General
Working hours: ≥ 100,000 h
MTBF: ≥ 10,000 h
Continuous working hours: ≥ 48 h
Working temperature: -20 to 50 º C (-4 to 122 º F)
Storage temperature: -40 to 60 º C (-40 to 140 º F)
Working humidity: 10 to 95 % (non-condensing)
Storage humidity: 10 to 95% (non-condensing)
Power: ≤ 22 W
Dimensions (W × H × D): 192 × 192 × 16.1 mm (7.6 × 7.6 × 0.6 inch)
Weight: ≤ 9.75 kg (21.5 lb)
