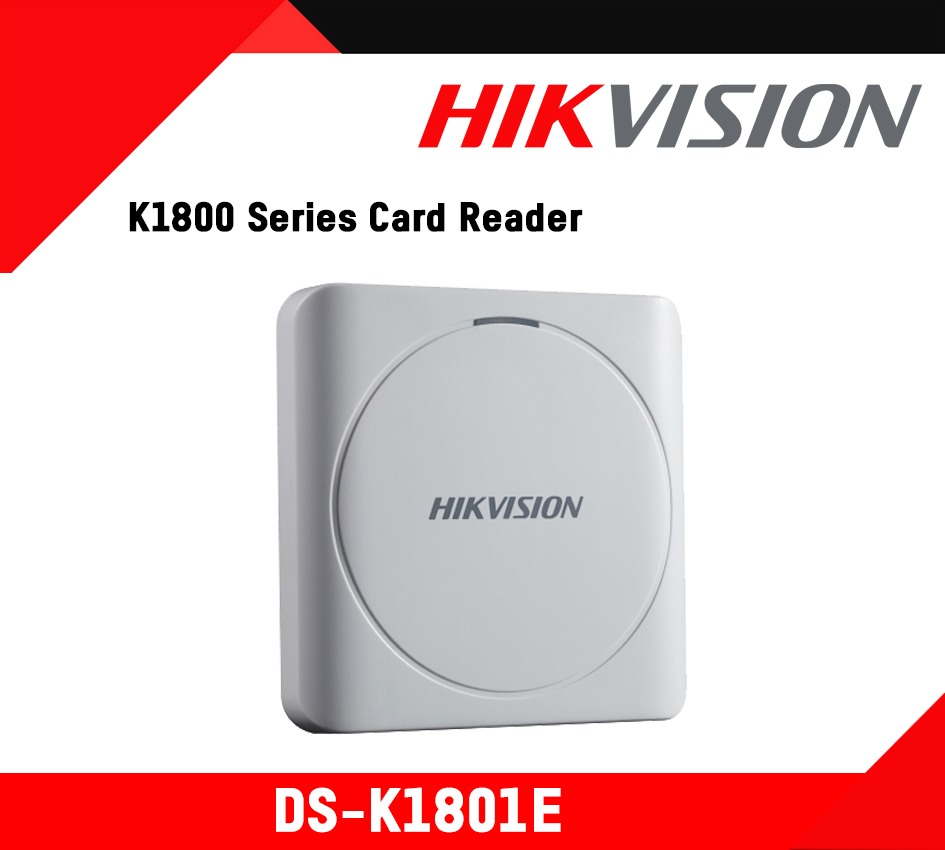

DS-K1801E Hikvision K1800 Series Card Reader Colombocctv.com Srilanka
DS-K1801E
Availability: not in Stock

DS-K1801E

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • PC+ABS material shell
  • Blue light display button design (DS-K1801EK, and DS-K1801MK)
  • IP65 Standard
  • Wiegand(w26, w34) protocol
  • Supports ID card recognition, and ID card number reading (DS-K1801E, and DS-K1801EK)
  • Supports Mifare card recognition, and Mifare card number reading (DS-K1801M, and DS-K1801MK)
  • Supports authentication methods such as card, and card & password (DS-K1801EK, and DS-K1801MK)
  • Supports opening door by swiping card (DS-K1801E, and DS-K1801M)
  • Watchdog design
  • High/low temperature resistant design (-20°C to + 65°C)

Description

User manual of DS-K1801 Series

Datasheet of DS-K1801 Series

System Parameters
Card Type: EM Card
Processor: 32-bit
Device Interfaces
Uplink Communication Interface: Wiegand (W26/W34)
Reading Range: ≤50mm (≤1.97″)
General
Key Board: N/A
Audio Alert: Beeper
Power Supply: 12V DC, 0.15A
Power Consumption: ≤1.6W
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP 65 Water-Proof
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 87mm × 87mm × 13.3mm (3.43″ × 3.43″ × 0.52″)
