DS-K1A8503MF-B

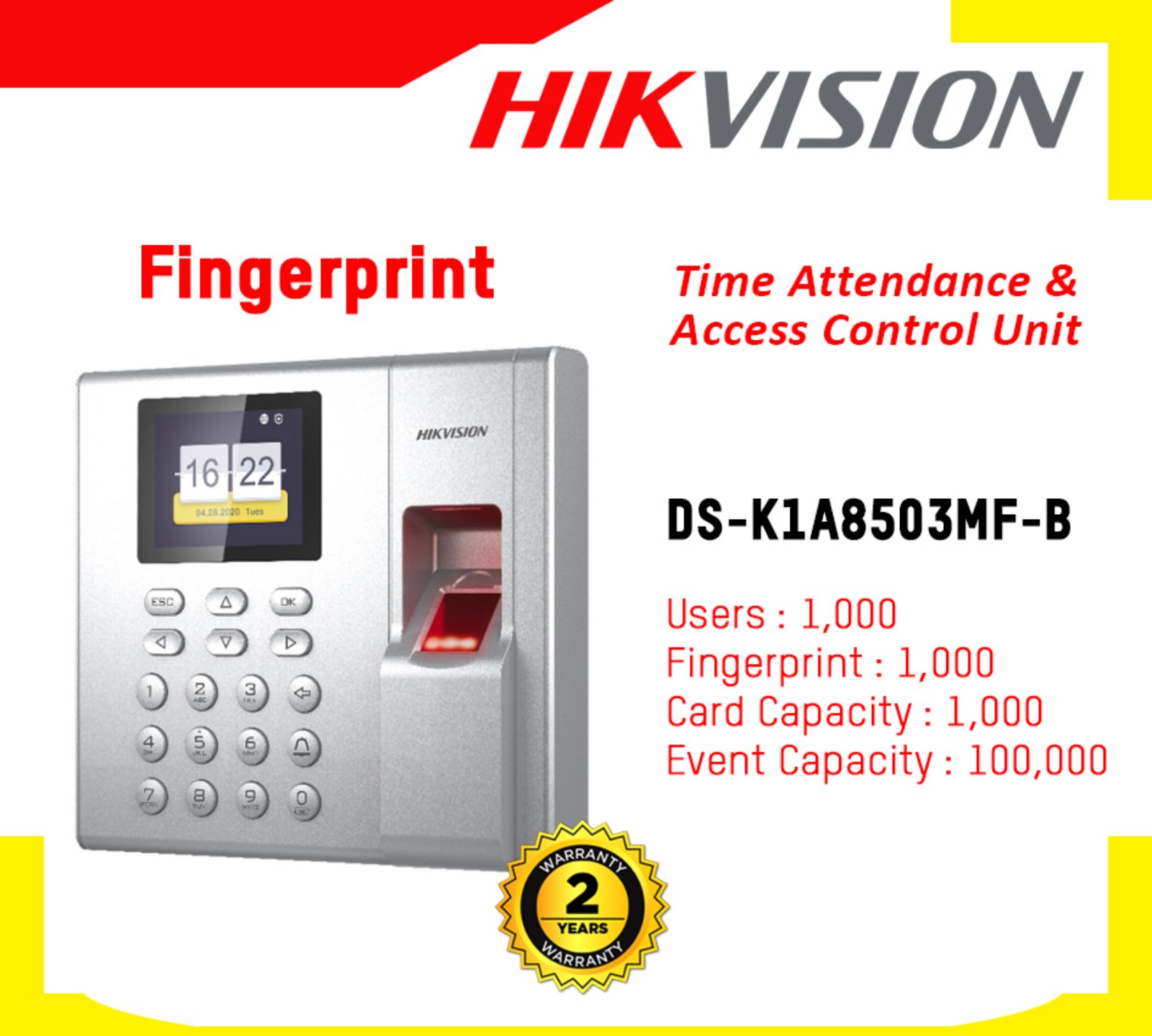

DS-K1A8503MF-B - Hikvision Time attendance & Access control unit Colombo cctv Sri-lanka
DS-K1A8503MF-B
Availability: not in Stock

DS-K1A8503MF-B

logo-2

Key Features

  • 2.4-inch LCD screen to display time, date, week, and attendance information
  • TCP/IP communication
  • 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
  • Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
  • Stand-alone operation (supports adding persons, cards, and fingerprints locally)
  • Downloads attendance reports by USB flash drive
  • Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Generates reports automatically
  • Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
  • Supports ISAPI protocol and ISUP 5.0 protocol
Categories:

Description

Datasheet: DS-K1A8503MF-B

User Manual: DS-K1A8503MF-B

System

  • Operation System : Linux

Display

  • Size : 2.4-inch
  • Type : LCD-TFT display screen

Audio

  • Audio Output : 1 loudspeaker, 1 buzzer

Network

  • Wired Network : TCP/IP, 10/100Mbps, self-adaptive

Interface

  • Network Interface : 1
  • USB : 1

Capacity

  • Card Capacity : 1000
  • Fingerprint Capacity : 1000
  • Event Capacity : 100,000

Authentication

  • Card Type : Mifare 1 card
  • Card Reading Distance : 0 to 5 cm
  • Fingerprint Module : Optical fingerprint module
  • Fingerprint Comparing Mode : 1:1 and 1:N
  • Fingerprint Recognition Duration : ＜ 1 s
  • Fingerprint False Acceptance Rate (FAR) : ≤ 0.001 %
  • Fingerprint False Rejection Rate (FRR) : ≤ 0.01 %

General

  • Power Supply : 5 VDC/1 A
  • Working Temperature : -10 °C to +55 °C (14 °F to +131 °F)
  • Working Humidity : 10% to 90% (no condensing)
  • Color : White
  • Dimensions : 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
  • Application Environment : Indoor
  • Installation : Wall mounting
