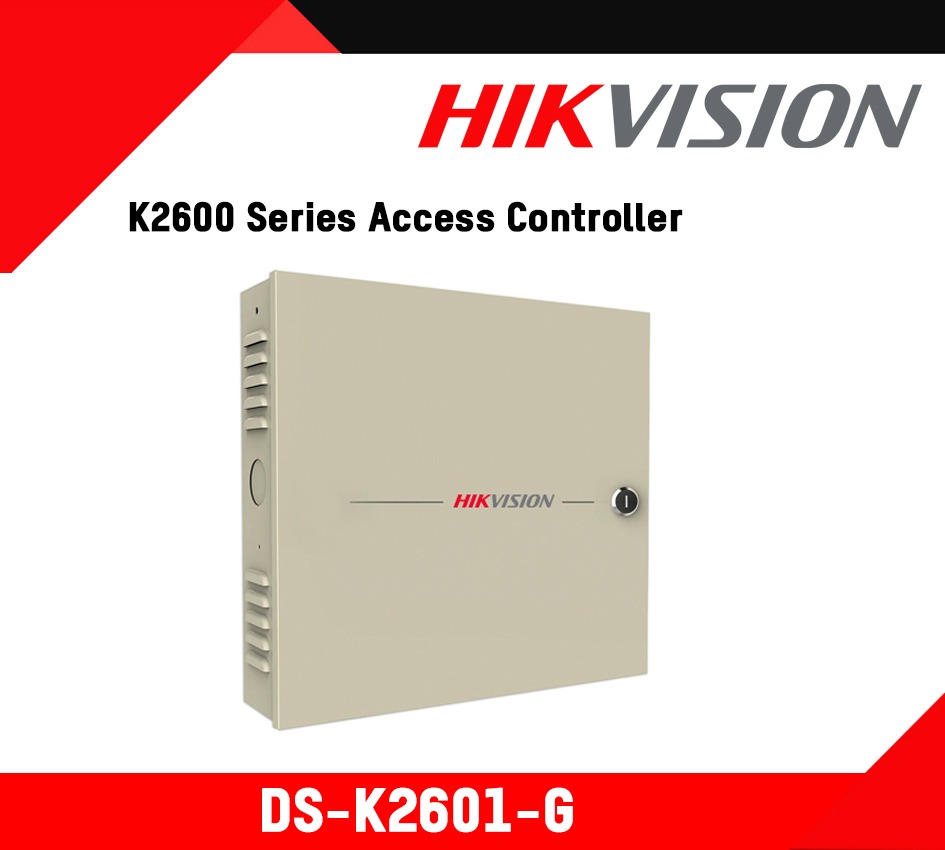

DS-K2601-G - Hikvision K2600 Series Access Controller - Colombo cctv - Sri-lanka
DS-K2601-G
Availability: not in Stock

DS-K2601-G

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • Pro Series Access Controller
  • 100,000 cards and 300,000 events storage
  • Communication via TCP/TP, ISUP5.0 and RS-485
  • ISAPI, OSDP supported
  • 1 door access control
  • Alarm input/output and alarm event upload
  • RS-485 interface and Wiegand interface for accessing card reader
  • UL294 Standard Qualified

Description


Datasheet: DS-K2601-G

Interface
  • Lock Control: 1
  • Exit Button: 1
  • Door Contact Input: 1
  • Alarm Input: 4
  • Alarm Output: 2
  • TAMPER: 1
General
  • Power Supply: 12 VDC/1 A
  • Power Consumption
    • ≤ 4 w (without load)
    • ≤ 50 w (with load)
  • Working Temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working Humidity: 10% to 90% (no condensing)
  • Dimensions: 398 mm × 474 mm × 100 mm (15.7″ × 18.7″ × 3.9″)
