Description

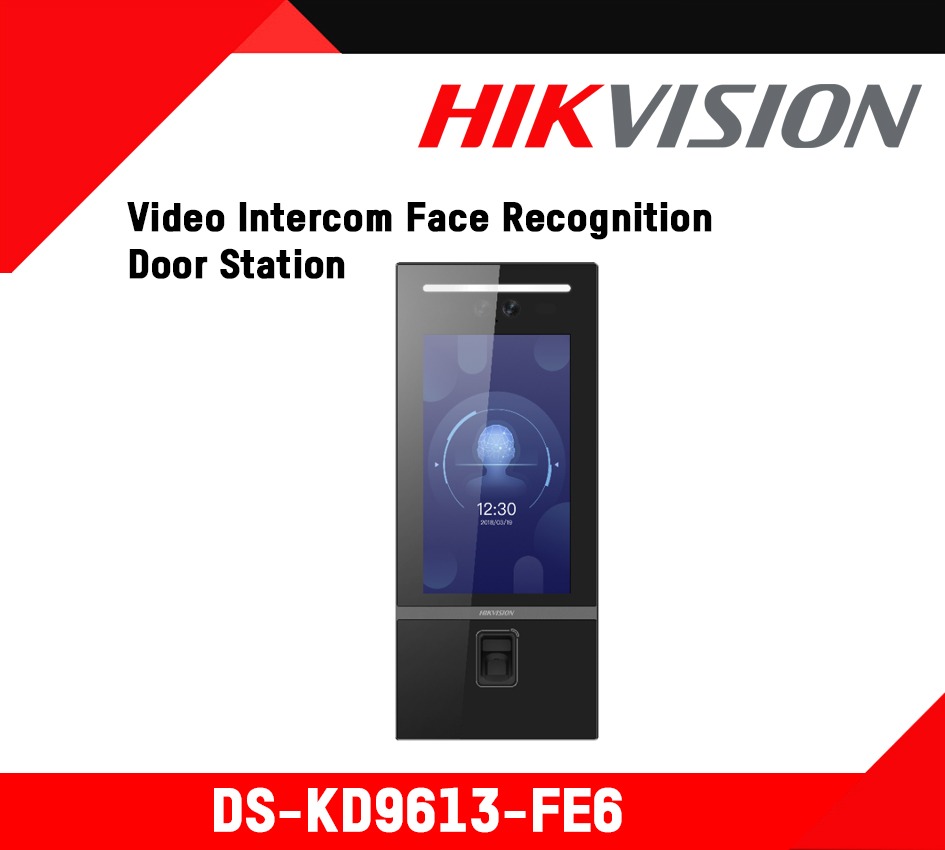

Datasheet: DS-KD9613-FE6
User Manual: DS-KD9613-FE6
System Parameters
- Operation System: Embedded Linux operation system
Display Parameters
- Size:10-inch
- Operation Method: Physical button
- Type: colorful LCD
- Resolution: 600 × 1024
Video Parameters
- Supplement Light: IR supplement
- Video Compression Standard: H.264
- Lens: 1
- FOV: Horizontal: 108° , Vertical: 59°, Diagonal: 129°
- WDR: True WDR
- Pixel
- Main stream : 1920 × 1080
- Sub stream : 720 × 480
Audio Parameters
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustabel
Capacity
- Fingerprint Capacity: Optical fingerprint module, Max. 5000 fingerprints
- Face Capacity: 5000
- Linked Indoor Station: 500
Network Parameters
- Communication Protocol: TCP/IP, RSTP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
Device Interfaces
- Network Interface: 1
- Exit Button: 1
- Lock Control: 2
- Door Contact Input: 1
- Power Interface: 1
General
- Installation: Flush mounting
- Weight: 2.53kg
- Protective Level: IP 65
- Power Supply Method: 12 VDC, 2A
- Working Temperature: -30 °C to +60 °C (-22 °F to +140 °F)
- Working Humidity: 10% to 90%
- Dimensions: 413mm ×175.2mm × 48.2mm
- Application Environment: Outdoor
- Power Consumption: ≤ 18 W
