Description

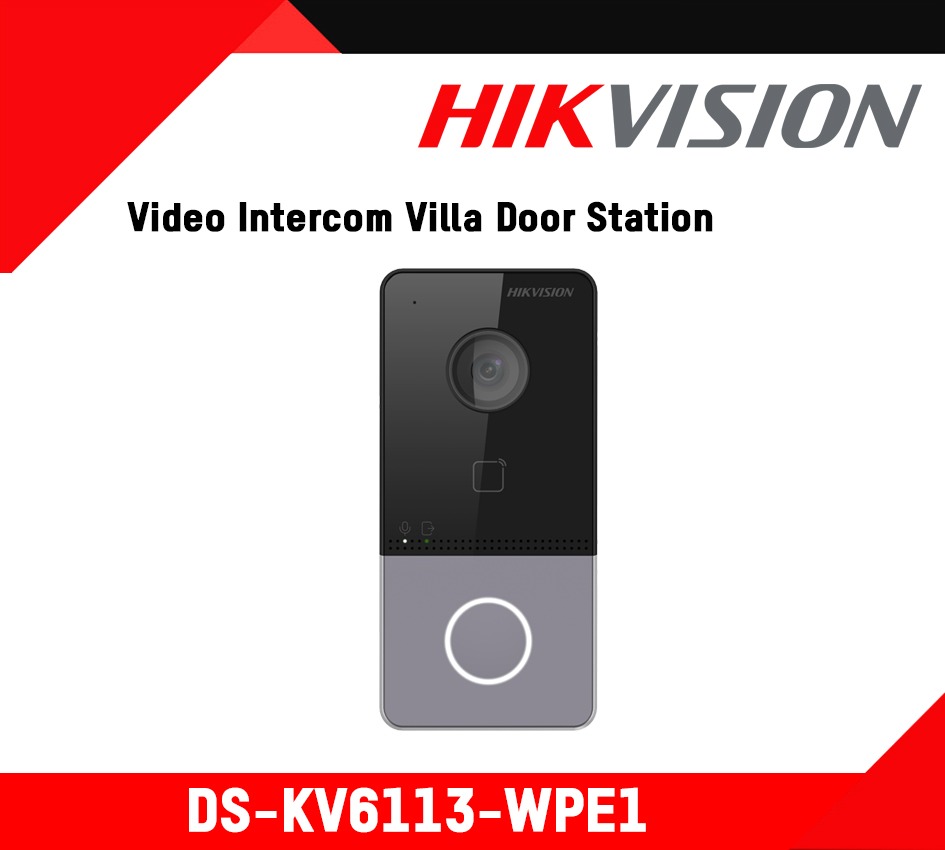

Datasheet: DS-KV6113-WPE1
Quick User Guide: DS-KV6113-WPE1
Video Parameters
- Supplement Light: IR supplement
- Lens: 1
- FOV: Horizontal: 129° Vertical: 75°
- Pixel
- Main stream: 1920 × 1080p, 720p
- Sub stream: 704 × 576
Audio Parameters
- Audio Quality: Noise suppression and echo cancellation
Network Parameters
- Communication Protocol: TCP/IP, RTSP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi: Support
- Bluetooth: Not supported.
- Received Frequency: 2.4 to 2.4835GHz
- Transmitted Frequency: 2.4 to 2.4835 GHz
- Bandwidth: 20 to 40 MHz
- Frequency Power
- 802.11b:16dBm +/- 1.5dBm
- 802.11g:15dBm +/- 1.5dBm
- 802.11n(ht20):14dBm +/- 1.5dBm
- 802.11n(ht40):12dBm +/- 1.5dBm
Device Interfaces
- Network Interface: 1
- Exit Button: 1
- Lock Control: 1
- Door Contact Input: 1
- Power Interface: 1
General
- Button: 1
- Indicator: 2
- Installation: Surface mounting
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Weight: 265g
- Protective Level: IP65
- Power Supply Method
- IEEE802.3af, standard PoE
- 12 VDC
- Dimensions: 138 mm × 65 mm × 27 mm
- Application Environment: Outdoor
- Power Consumption:＜ 10 W
