Description
Datasheet: DS-KV8113-WME1/Flush
User Manual: DS-KV8113-WME1/Flush

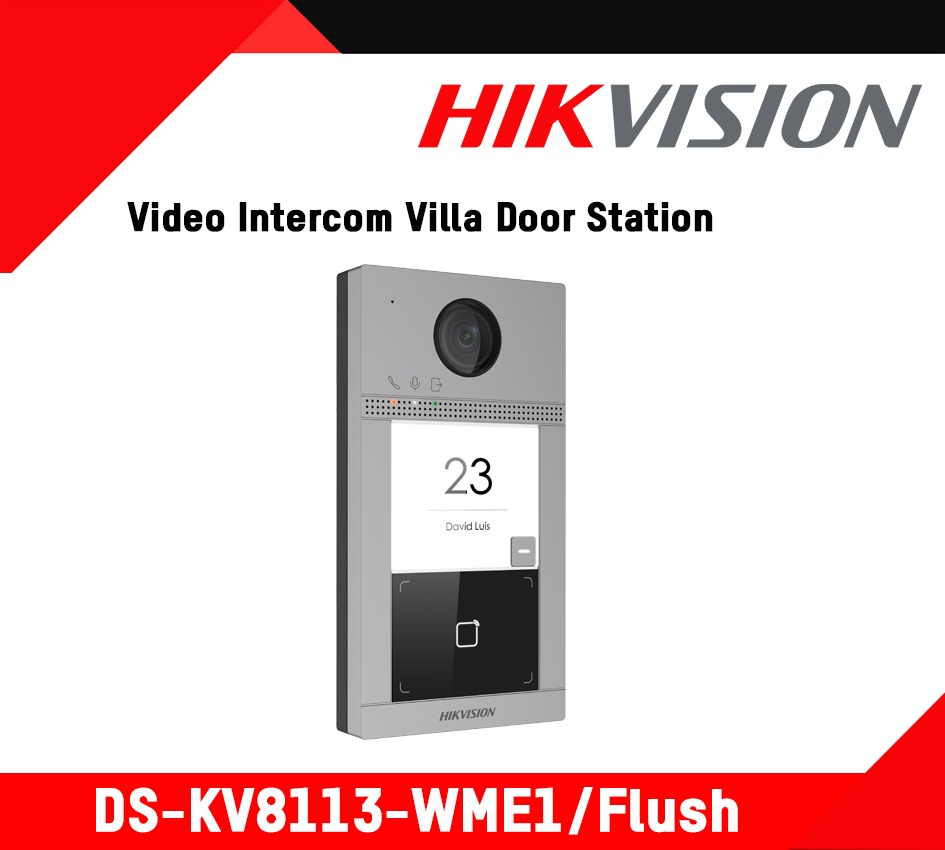

| Model | DS-KV8113-WME1/Flush | |
|---|---|---|
| Product type | Video intercom door/gate station | |
| System | IP | |
| Product generation | II | |
| Parameters | ||
| Number of buttons | 1-subscriber | |
| Status indicator | 3 LEDs | |
| Color camera resolution | 2 MP | |
| Memory | Flash: 32MB, RAM: 256MB | |
| Max. stream resolution | Main (px) : 25 fps @ 1920 x 1080 | |
| Secondary (px): 25 fps @ 704 x 576 | ||
| Viewing angles | H:129, V: 75 | |
| Video compression | H.264 | |
| Motion detection | Yes | |
| IR illuminator | 3m | |
| Other image parameters | BLC, DNR, WDR | |
| Built-in speaker/microphone | Yes | |
| Two-way audio | Yes | |
| Audio compression | G.711U | |
| Audio bitrate | 64kbps | |
| Audio quality | Echo and noise cancellation | |
| Built-in card reader | Mifare, 13.56 MHz (256 cards) | |
| Relay outputs | 2 (NO/NC) | |
| Alarm inputs | 4 | |
| Tamper contact | 1 | |
| WiFi | 2.4 GHz (802.11b/g/n) | |
| microSD slot | max. 128GB | |
| Network interface | RJ-45 10/100 Base-T | |
| Other interfaces | RS-485, debugging port | |
| Protocols | TCP/IP, RTSP | |
| Power supply | DC12, IEEE802.3af PoE | |
| Housing material | Alumnum | |
| Power consumption | max. 10 W | |
| Protection degree | IP65, IK08 | |
| Operating temperature | -40…+53 °C | |
| Dimensions | 174 x 91 x 29 mm | |
| Weight | 0.58 kg | |
