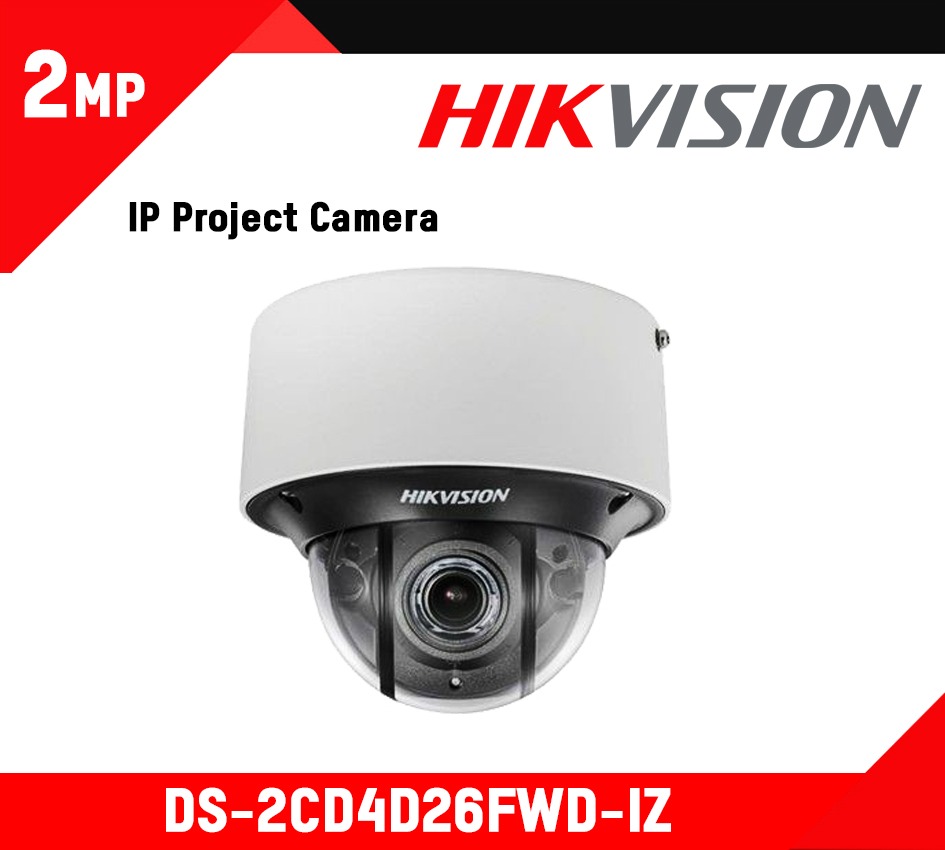

DS-2CD4D26FWD-IZ

Description

User Manual of DS-2CD4D26FWD-IZ

Datasheet of DS-2CD4D26FWD-IZ

Camera

• Image Sensor : 1/1.8″ Progressive Scan CMOS
• Min. Illumination : Color: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.00027 Lux @ (F1.4, AGC ON), 0 Lux with IR”
• Shutter Speed : 1 s – 1/100,000 s
• Slow Shutter : Support
• Lens : 2.8 – 12 mm F1.4, horizontal angle of view 90.1° – 31°
• Lens Mount : Φ14
• Auto-iris : DC drive
• Day & Night : IR Cut Filter
• Digital Noise Reduction : 3D DNR
• WDR : 120dB
• 3-Axis Adjustment : Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°

Compression Standard

• Video Compression : Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.264+ : Support
• H.265 Type : Main Profile
• H.265+ : Support
• Video Bit Rate : 32 Kbps – 16 Mbps
• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)


• Max. Resolution : 1920 × 1080
• Main Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream : 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
• Third Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
• Image Enhancement : BLC/HLC/3D DNR/Defog/EIS
• Image Setting : Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
• Region of Interest : Support 4 fixed region for each stream, and dynamic face tracking
• Target Cropping : Support
• Day/Night Switch : Auto/Schedule/Triggered by Alarm In (-S)
• Picture Overlay : LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network

• Network Storage : Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger : Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function : One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
• Standard : ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Interface

• Audio : With –S model: 1 input (line in), 1 output, dual-track
• Communication Interface : 1 RJ45 10M/100M Ethernet port; with –S model: 1 RS-485 interface
• Alarm : With –S model: 2 inputs, 2 outputs (up to DC24V 1A or AC110V 500mA )
• Video Output : 1Vp-p composite output (75 Ω/BNC)
• On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Reset Button : Yes

Audio

• Environment Noise Filtering : Support
• Audio I/O : Support
• Audio Sampling Rate : Max. 48 kHz

Smart Feature-set

• Behavior Analysis : Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Line Crossing Detection : Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
• Intrusion Detection : Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
• Region Entrance Detection : Enter a pre-defined virtual region from the outside place
• Region Exit Detection : Exit from a pre-defined virtual region
• Object Removal Detection : Objects removed from the pre-defined region, such as the exhibits on display.
• Unattended Baggage Detection : Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Exception Detection : Scene change detection
• Face Detection : Human face appears in the image can be detected and trigger linkage method

General

• Operating Conditions : -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
• Power Supply : 12 V DC ± 20%, PoE (802.3af, class 3) Terminal block for DC input
• Power Consumption and Curren : 12 V DC ± 20%: max. 9W/0.75A PoE (802.3af): max. 10W/0.21A
• IR Range : 10 m to 30 m
• Protection Level : IP66
• Dimensions : Φ145.96 × 133.5 mm (Φ5.75″ × 5.26″)
• Weight : 1200 g (2.65 lb.)
