Description
Datasheet: DS-2CE79H8T-IT3ZF
User Manual: DS-2CE79H8T-IT3ZF

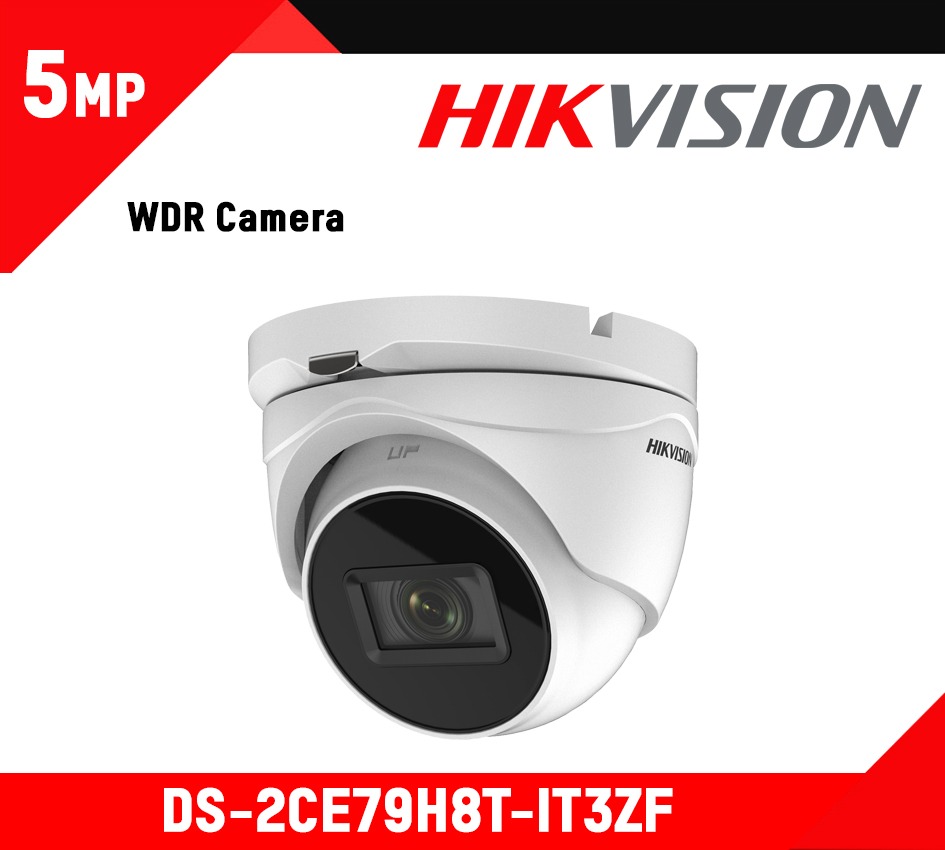

| Model | DS-2CE79H8T-IT3ZF |
|---|---|
Camera |
|
| Image Sensor | 5 MP progressive scan CMOS |
| Resolution | 2560 (H) × 1944 (V) |
| Min. illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Frame Rate | TVI: 2MP@25fps, 2MP@30fps, 4MP@25fps, 4MP@30fps, 5MP@20fps AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: NTSC |
| Shutter Speed | 1/30 s to 1/50, 000 s |
| Lens | 2.7 mm to 13.5 mm motorised varifocal lens |
| Horizontal Field of View | 92.3° to 29.3° |
| Lens Mount | Φ14 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Signal System | NTSC |
| Synchronization | Internal synchronization |
| WRD | ≥ 130dB |
Menu |
|
| AGC | Supported |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| WDR | Yes |
| 3D DNR | Level 1 to 9 |
| Privacy Mask | 4 programmable privacy masks |
| BLC | Yes |
| Motion Detection | 4 programmable motion areas |
| Language | English |
| Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
Interface |
|
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
General |
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 9 VDC to 15 VDC |
| Power Consumption | Max. 7.4 W |
| Protection Level | IP67 |
| Material | Metal |
| IR Range | Up to 60 m |
| Communication | Up the coax, Protocol: HIKVISION-C (HD-TVI output) |
| Dimensions | 4.88″ x 5.29″ x 4.34″ (123.86 mm x 134.3 mm x 110.24 mm) |
| Weight | Approximately 1.32lbs (600 g) |
