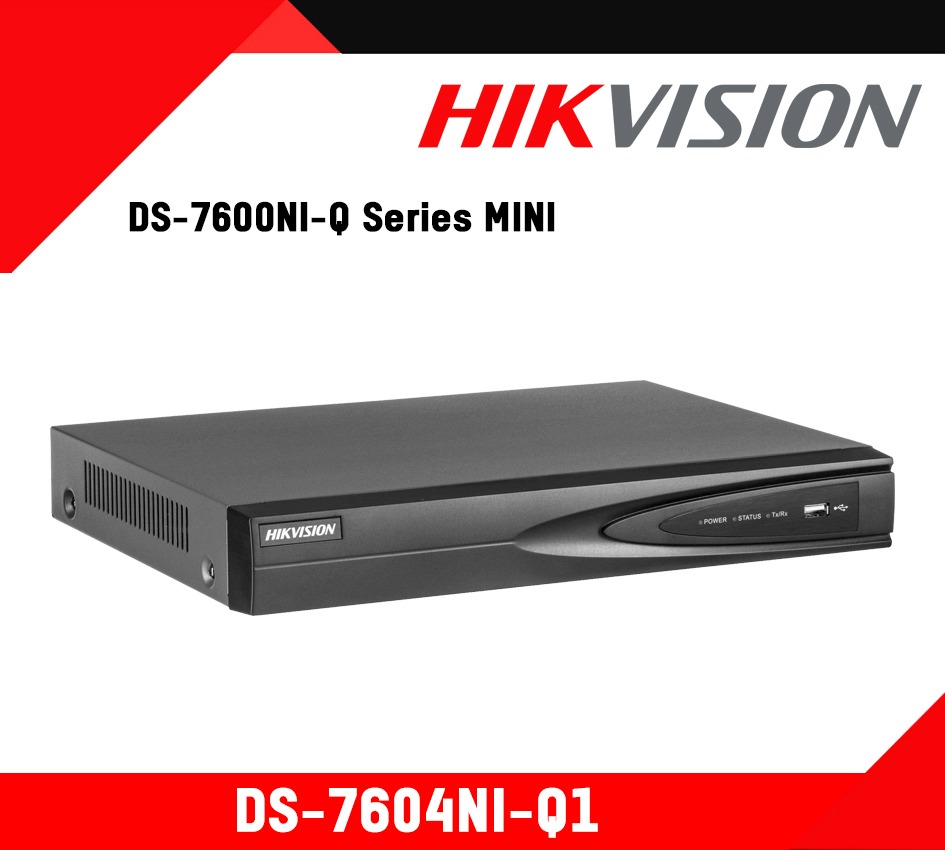

DS-7604NI-Q1
Vous êts ici:
ColomboCCTV Home Page
/
/
/
DS-7604NI-Q1
DS-7604NI-Q1 - Hikvision DS-7600NI-Q Series MINI NVR Colombo CCTV Srilanka
DS-7604NI-Q1
Availability: not in Stock

DS-7604NI-Q1

logo-2

Key Features

  • Hikvision’s DS-7604NI-Q1/4P Series of 4K Network NVRs let you centrally manage IP camera settings, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
  • Supports 4 IP Cameras and up to 8 MP resolution
  • 1 Self-Adaptive 10/100/1000 Mbps Network Interface
  • HDMI Output Resolution: 1-ch, 4K (3840 × 2160)/30 Hz, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI/VGA simultaneous output
  • Incoming Bandwidth: 40 Mbps Outgoing Bandwidth: 80 Mbps
Categories:

Description

Datasheet: DS-7604NI-Q1

User Manual: DS-7604NI-Q1

Quick Start Guide: DS-7604NI-Q1

Specification

Motion Detection 2.0

  • Human/Vehicle Analysis: 1-ch;4-ch

Video And Audio

  • IP Video Input: 4-ch
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ;1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 9 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
  • VGA Output: 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz; HDMI/VGA simultaneous output
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding Format: H.265+,H.265,H.264+,H.264
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback: 4-ch
  • Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

    *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

Network

  • Remote Connection: 32
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

  • SATA: 1 SATA interface
  • Capacity: Up to 8 TB capacity for each disk
  • USB Interface: 2 × USB 2.0

General

  • Power Supply: 12 VDC, 1.5 A
  • Consumption: ≤ 10 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10 to 90 %
  • Dimension (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)
