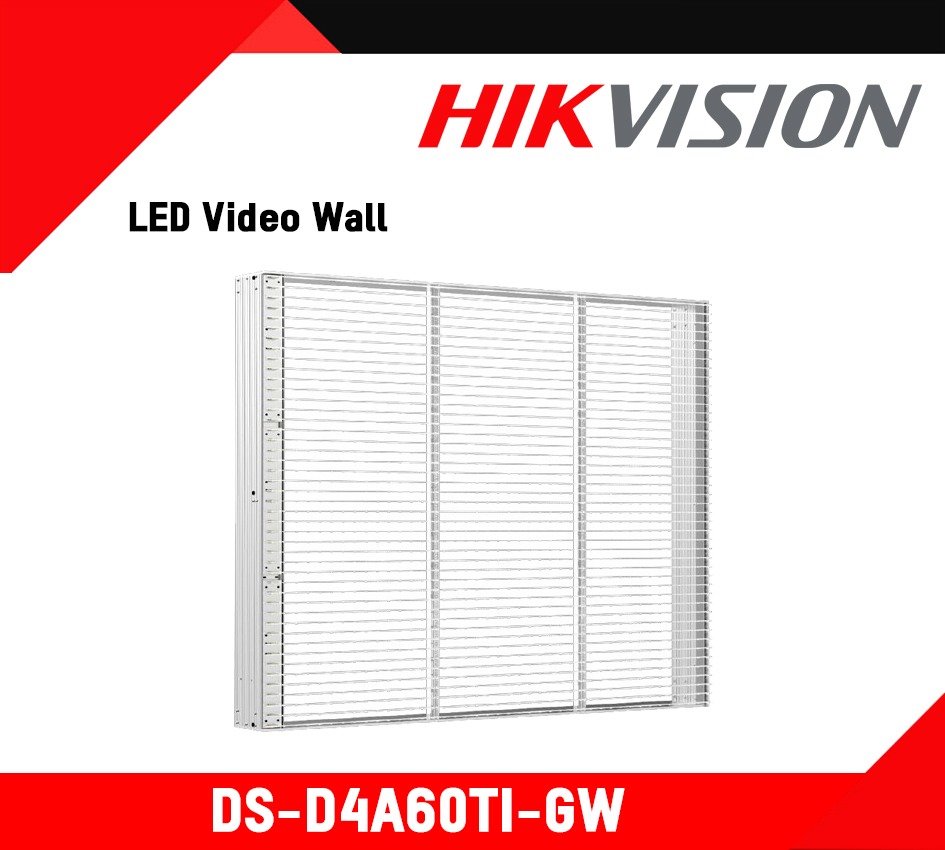

DS-D4A60TI-GW
DS-D4A60TI-GW
Availability: not in Stock

DS-D4A60TI-GW

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • For video wall composition with superior luminance uniformity and black mura prevention
  • High transparency and high transmittance
  • High brightness provides vivid images in a range of lighting conditions
  •  Light and thin
  • Modular design, quick installation, and hide the wire.
  •  Superior brightness and color uniformity maintains smooth and complete image quality
  •  Ultra high refresh rate
  • Nanosecond response time
  •  Long service life
  •  Wide viewing angle
  •  High aperture ratio and wide color gamut coverage
  •  Low heating and superior cooling system ensures high reliability and environmental protection.

Description

Datasheet : DS-D4A60TI-GW

LED Unit
Module type: Surface mounted trinity LED
Pixel pitch: H: 6mm V: 8mm
Resolution: 166 ×125
Dimensions: 1000mm(W) × 1000mm(H) × 100mm(D)
Weight: 15 kg/㎡
Pixel density: 20833 pixel/㎡
Transparency: 75%
Ingress protection: IP43
Material: Aluminium
Optical
Brightness: 5000 nits
Color temperature: 3000 ~10000K, adjustable
Viewing angle: Horizontal 160°, vertical 160°
Recommended viewing distance: ≥ 6m
Center distance deviation of LED: < 3%
Brightness uniformity: ≥ 97%
Color uniformity: ≤ ± 0.003 Cx, Cy
Contrast: ≥3000 : 1
Electrical
Max. consumption: 800 W/㎡
Average consumption: 250 W/㎡
Power supply: 100~240 VAC
Processing Performance
Driving mode: Constant current driving
Frame frequency: 60 Hz
Refresh rate: ≥1500 Hz
Processing depth: 16 bit
Grey level: 65536 level
Color: 281.4 trillion
Brighness control: Auto/Manual
General
Working hours: ≥ 100,000 h
Working temperature: -10 ~ 45 º C (14 to 104 º F)
Storage temperature: -20 ~ 60 º C (-4 to 140 º F)
Working humidity: 10 ~ 90 % (non-condensing)
Storage humidity: 10 ~ 90% (non-condensing)
