Description

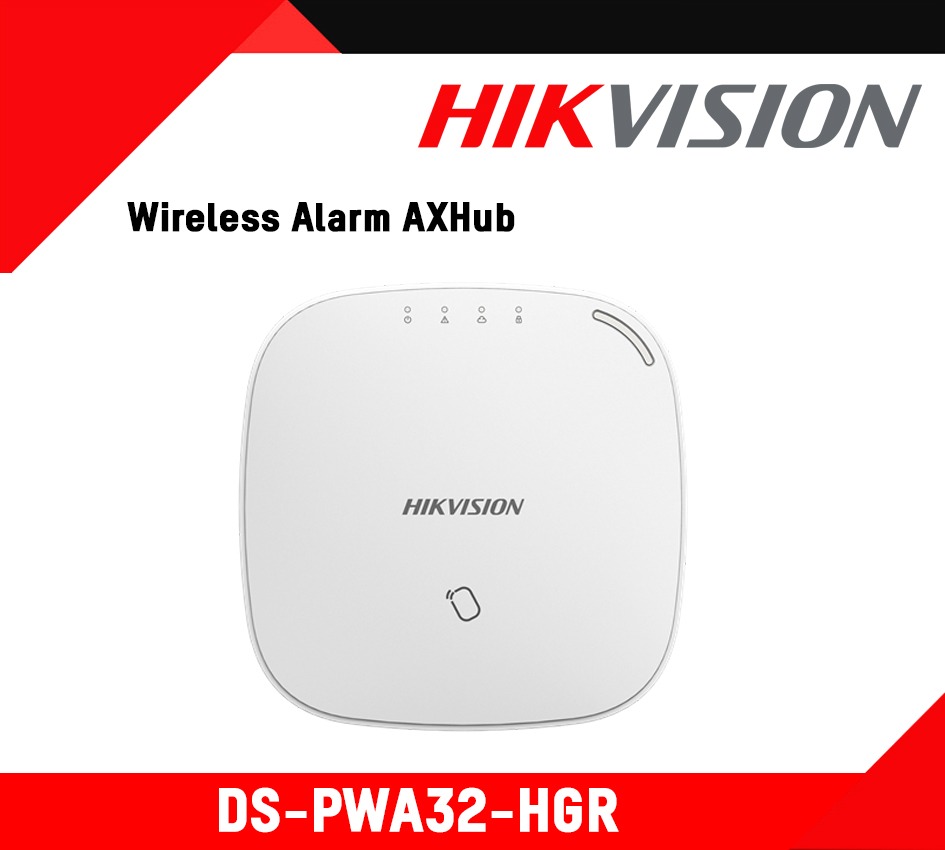

User Manual :DS-PWA32-HGR
Datasheet :DS-PWA32-HGR
/nƐƚĂůůĂƟŽn Guide:DS-PWA32-HGR
| Features | |
|---|---|
| Partition | 4 |
| Tamper-Proof | Tampering alarm |
| Schedule | Auto Arm/Disarm Schedule |
| SMS Notification | Support |
| Phone Call Notification | Support |
| Phone Numbers | 8 |
| Signal Strength Indication | ；Signal Strength Indicators (SSI)； |
| Application | iVMS-4200, and mobile APP |
| IC Card | 12 |
| Interface | |
| Alarm Input | 32 |
| Alarm Output | 32 |
| Indicator | LED |
| RF Transmission | |
| RF Frequency | 868MHz |
| RF Modulation | 2GFSK |
| RF Range | 800m (Open Area) |
| Electrical Characteristics | |
| Power Supply | 5 VDC，10 W |
| Battery Type | 4520 mAh lithium backup battery |
| Battery Life Span | supports up to 12h power supply |
| Power Consumption | < 5.6 W |
| Network | |
| Wired Network | 10M/100M Self-adaptive |
| Network Encryption | AES-128 encryption |
| Wi-Fi Standard | 802.11b/g/n |
| Wi-Fi Encryption | Supported |
| Wi-Fi Channel | 2.4 G |
| General | |
| Operation Temperature | –10 °C to 55 °C |
| Operation Humidity | 10% to 90% |
| Shell Material | PC+ABS |
| Dimension(WxHxD) | 155 × 155 × 35mm |
| Audio | |
| Audio Output | 1, 1.5W |
| Device Connection | |
| Keyfob | 8 |
| Tag Reader | 4 |
| Keypad | 4 |
